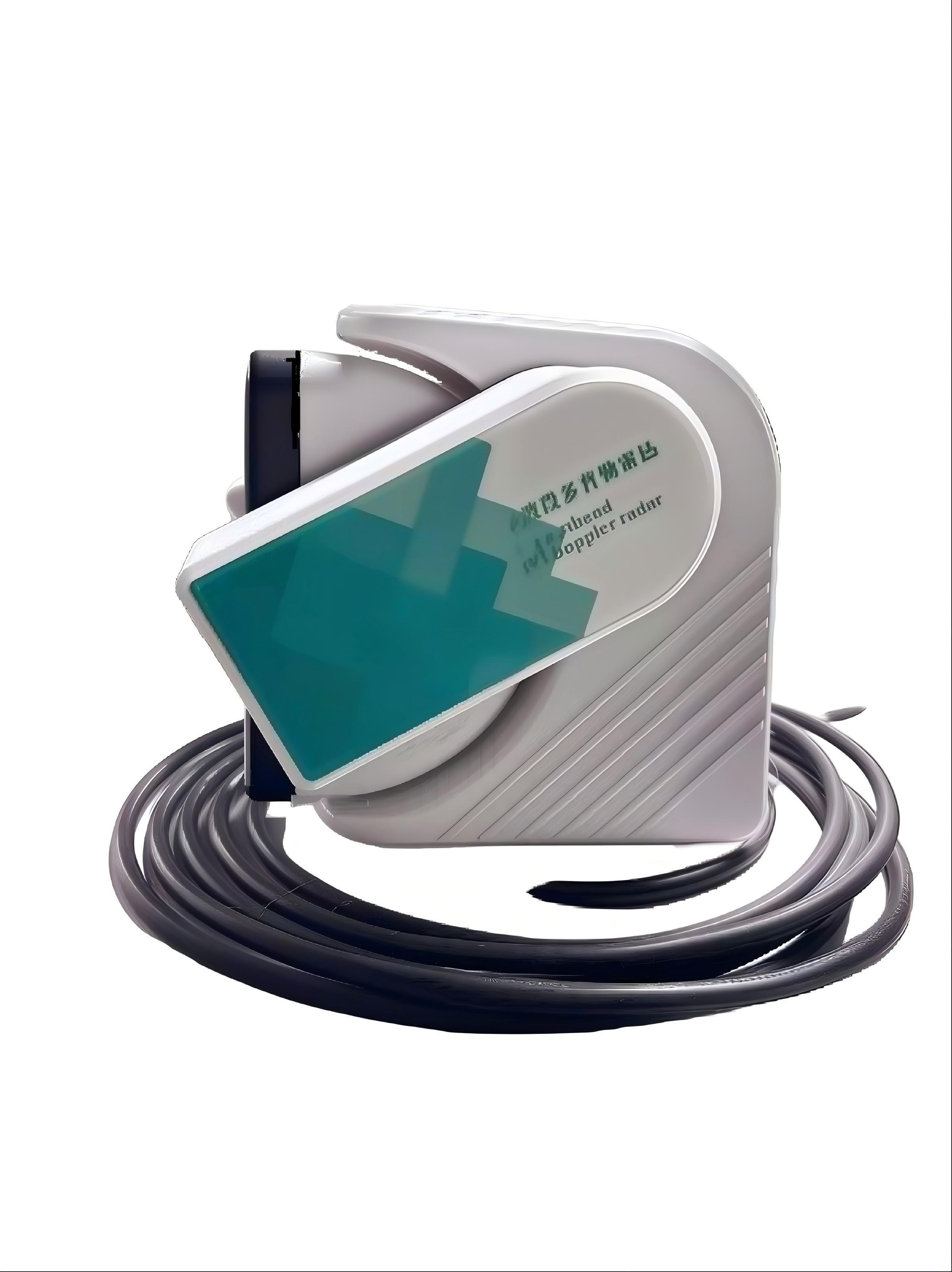

Multi-band Doppler Radar (Flow Meter)
The Multi-band Doppler Radar Flowmeter is an independently developed and innovated non-contact fluid flow measurement device by Ecolor. Adopting the p...
Key Features
Performance Metrics
| Angle-adjustabl | 15°~75° |
| Direction Recognition | Bidirectional Automatic Recognition |
| Pixel | 5 Megapixels |
| Standby Time | Built-in Battery: 10 Days; External Battery: 2 Years |
Key Features
Multi-band Doppler Radar Flow Meter
The Multi-band Doppler Radar Flow Meter is a state-of-the-art, non-contact fluid flow measurement device. It leverages proprietary multi-band radar frequency shift technology and the Doppler principle for continuous, accurate data sampling, making it an ideal solution for modern flow monitoring needs.
Advanced 3-in-1 Integration for Comprehensive Monitoring

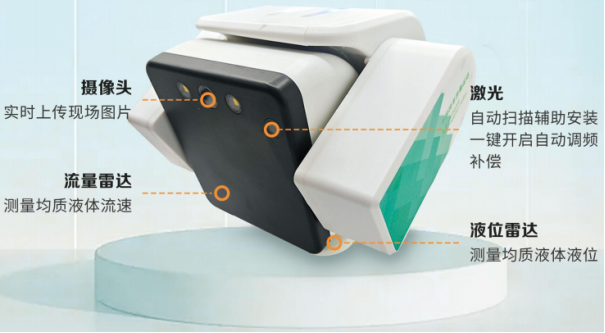

This innovative device integrates a liquid level gauge, flow meter, and camera into a single, compact unit. This ultra-high integration provides all-in-one monitoring capability, simplifying system design and data acquisition.
Relying on the advanced SITUMAN Water Conservancy COSP Model, it accurately calculates key parameters including water level, flow velocity, and total flow rate of the measured fluid.
Core Advantages: Easy Installation & Operation
Easy Installation Process

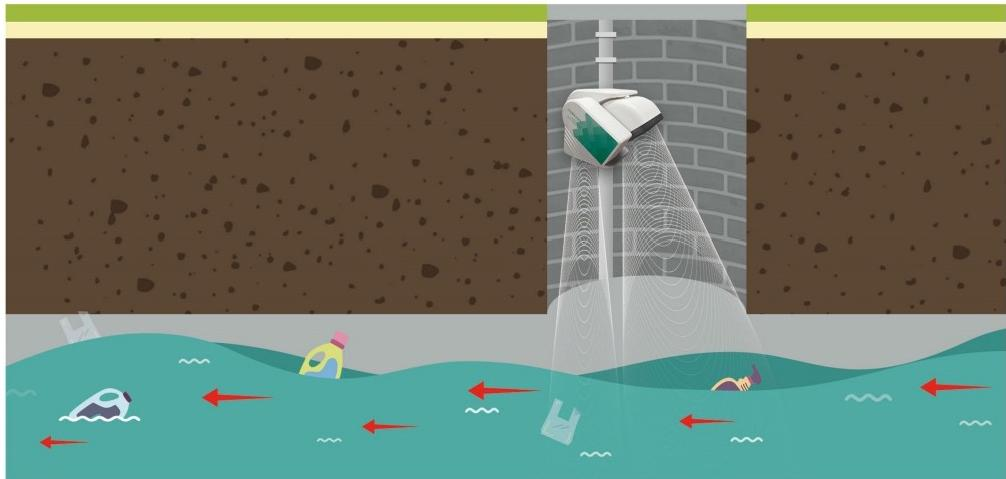

Installation requires only a set of poles and expansion bolts. Personnel can mount the bracket on the well wall to hang the device safely from above, eliminating the need to descend into the well.
This non-contact type installation is quick, minimizes impact on traffic and the environment, and is unaffected by water flow or toxic gases at the well bottom.
Simple Commissioning & Stable Operation
The built-in motor allows for flexible, remote adjustment of the radar's irradiation angle, ensuring optimal detection alignment and making device commissioning simple.
The device maintains stable operation and is immune to interference or obstruction caused by dirt and sediment accumulation at the well bottom, ensuring high long-term reliability.
Convenient Operation and Maintenance

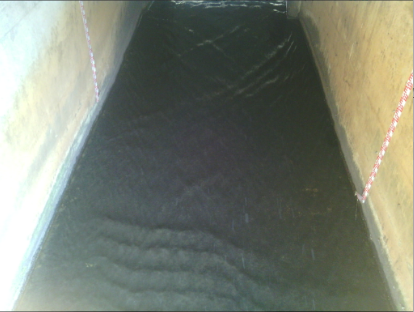

The integrated camera provides real-time visual feedback of on-site working conditions. Users can intuitively check for abnormal conditions without physical inspection.
If maintenance is required, the device can be easily replaced from above, again eliminating the need for personnel to enter the well, enhancing safety and reducing downtime.
Key Application Scenarios
The Multi-band Doppler Radar Flow Meter is designed to meet the fluid measurement and supervision needs of various critical fields. Its robust and non-contact design makes it particularly suitable for challenging environments.
Urban Underground Pipeline Network Monitoring
This device is a cornerstone for smart city infrastructure, providing reliable flow data for stormwater and sewage systems. Its easy installation minimizes disruption in dense urban areas.
Ecological Flow and Smart Agriculture Monitoring
It is perfectly suited for monitoring river ecological base flows and irrigation channels in smart agriculture. The integrated camera adds a visual layer to quantitative data, enriching environmental and agricultural management.
Enhanced Supplementary Functions
Flexible Camera and Capture Settings

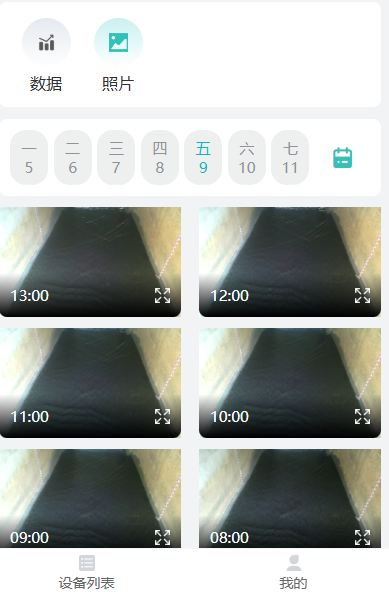

Featuring high-resolution capture capability, the integrated camera offers great flexibility. Users can customize the daily shooting frequency via the background system for routine monitoring.
It also supports on-demand, real-time capture of on-site scenarios whenever necessary, allowing for immediate visual verification of events or alarms.
Expandable System for Water Quality Monitoring
The device platform is designed for future expansion. It supports connection to external water quality sensors, enabling the addition of comprehensive water quality monitoring capabilities to the existing flow and level data.
This expandability makes it a future-proof investment for growing monitoring requirements in environmental protection and resource management.
Technical Specifications & Key Features
| Category | Specification / Description |
|---|---|
| Measurement Principle | Non-contact Doppler Radar, Multi-band Frequency Shift Technology |
| Integrated Functions | Liquid Level Gauge, Flow Meter, Camera (3-in-1) |
| Calculation Model | SITUMAN Water Conservancy COSP Model |
| Key Output Parameters | Water Level, Flow Velocity, Flow Rate |
| Camera Function | High-resolution capture, customizable shooting frequency, real-time on-demand capture |
| Adjustment Feature | Built-in motor for flexible radar irradiation angle adjustment |
| Expansion Capability | Supports external water quality sensors |
| Protection Rating | IP68 (Dust-tight and protected against prolonged immersion) |
