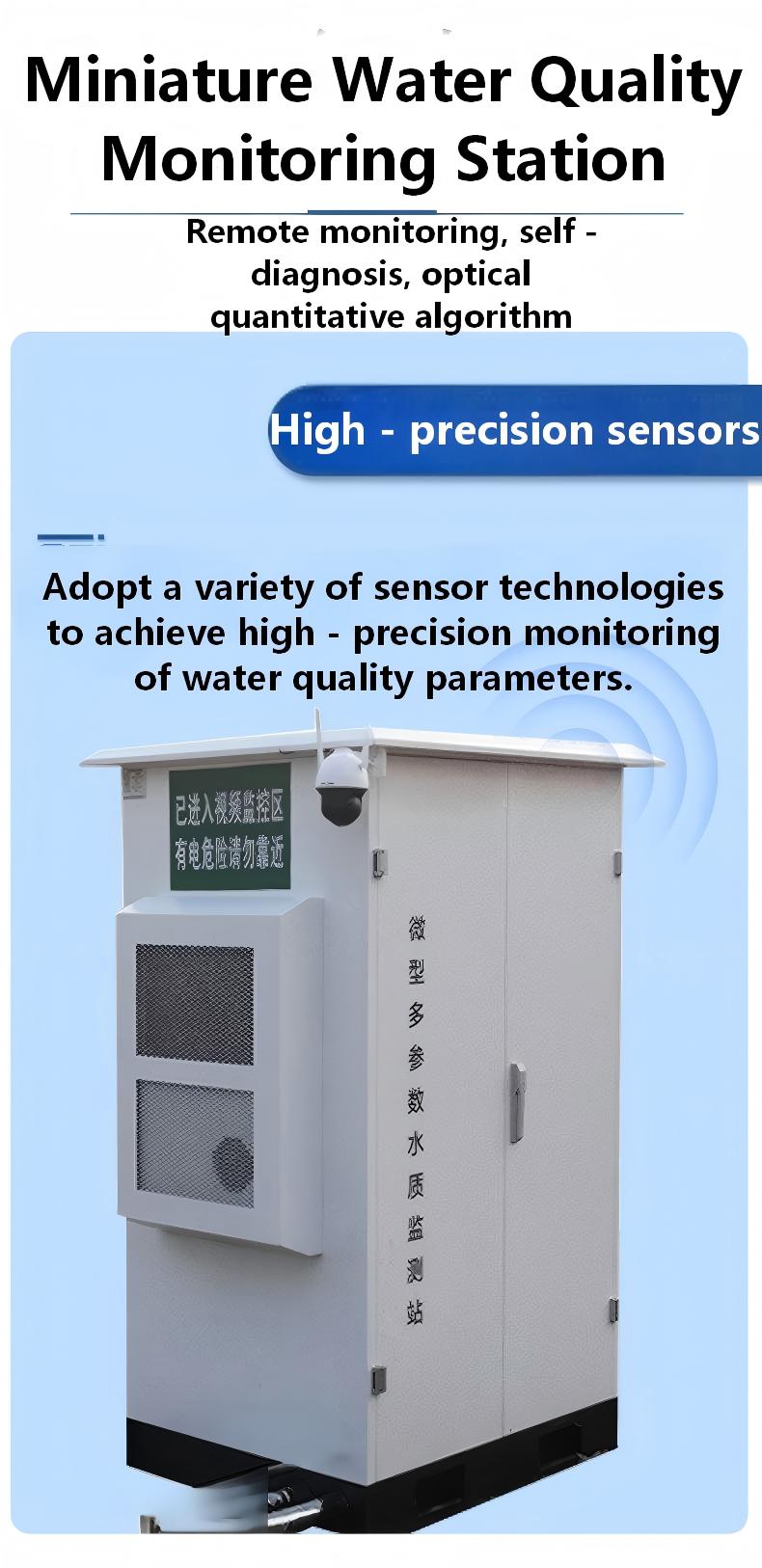

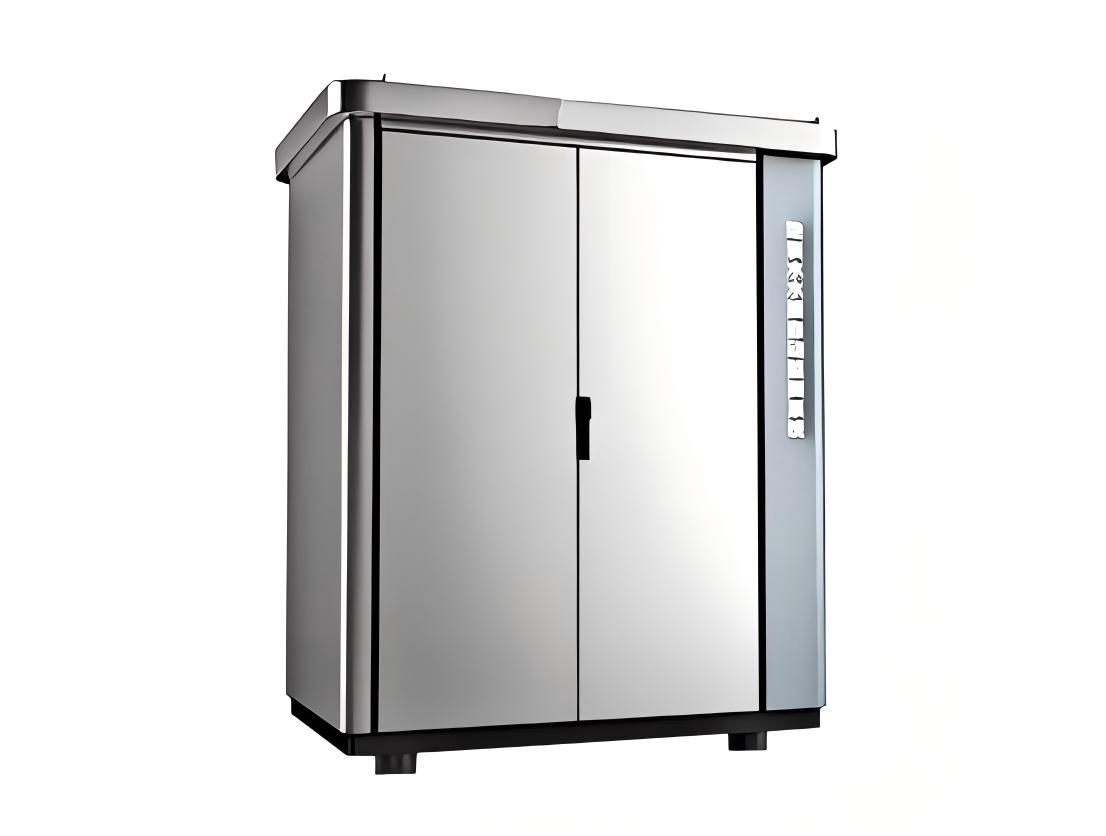

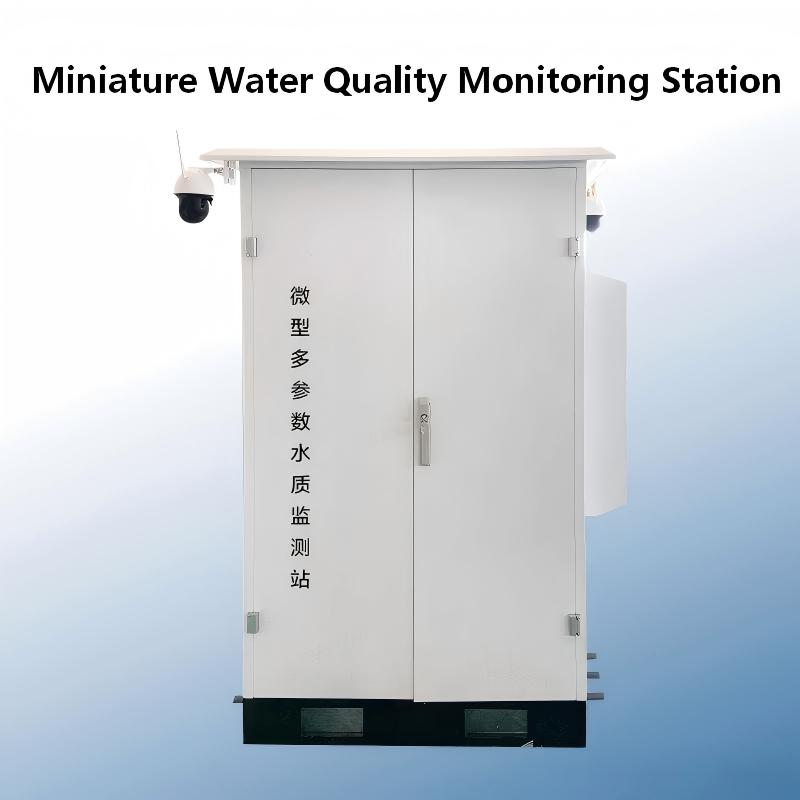

Compact Water Quality Monitoring Station
A pre-integrated, all-in-one outdoor monitoring station for convenient water environment surveillance. It incorporates sampling, pretreatment, analyti...
Key Features
Performance Metrics
| Digital Communication Interfaces | RS232, RS485, RJ45 |
| Measurement Parameters | COD, Ammonia Nitrogen, Total Phosphorus, Total Nitrogen, Conventional Five Parameters (pH, DO, Conductivity, Turbidity, Temperature) |
| Measurement Range | COD: (0~1000)mg/L; Ammonia Nitrogen: (0~200)mg/L; Total Phosphorus: (0~20)mg/L; Total Nitrogen: (0~300)mg/L |
| Protection Rating | IP55 (Shelter overall design can achieve IP65 or higher) |
Key Features
Compact Water Quality Monitoring Station
The Compact Water Quality Monitoring Station is a professional, integrated device designed for real-time water quality monitoring of various water bodies including rivers, lakes, groundwater, and drinking water sources. Its compact design and powerful functionality make it a key tool for safeguarding water resource quality and environmental protection.
Design & Construction
Compact & Integrated Design
The station adopts a highly integrated design philosophy, consolidating various complex detection equipment and auxiliary devices into a compact space. This integrated design not only saves installation space but also greatly facilitates rapid deployment and installation under different environmental conditions.

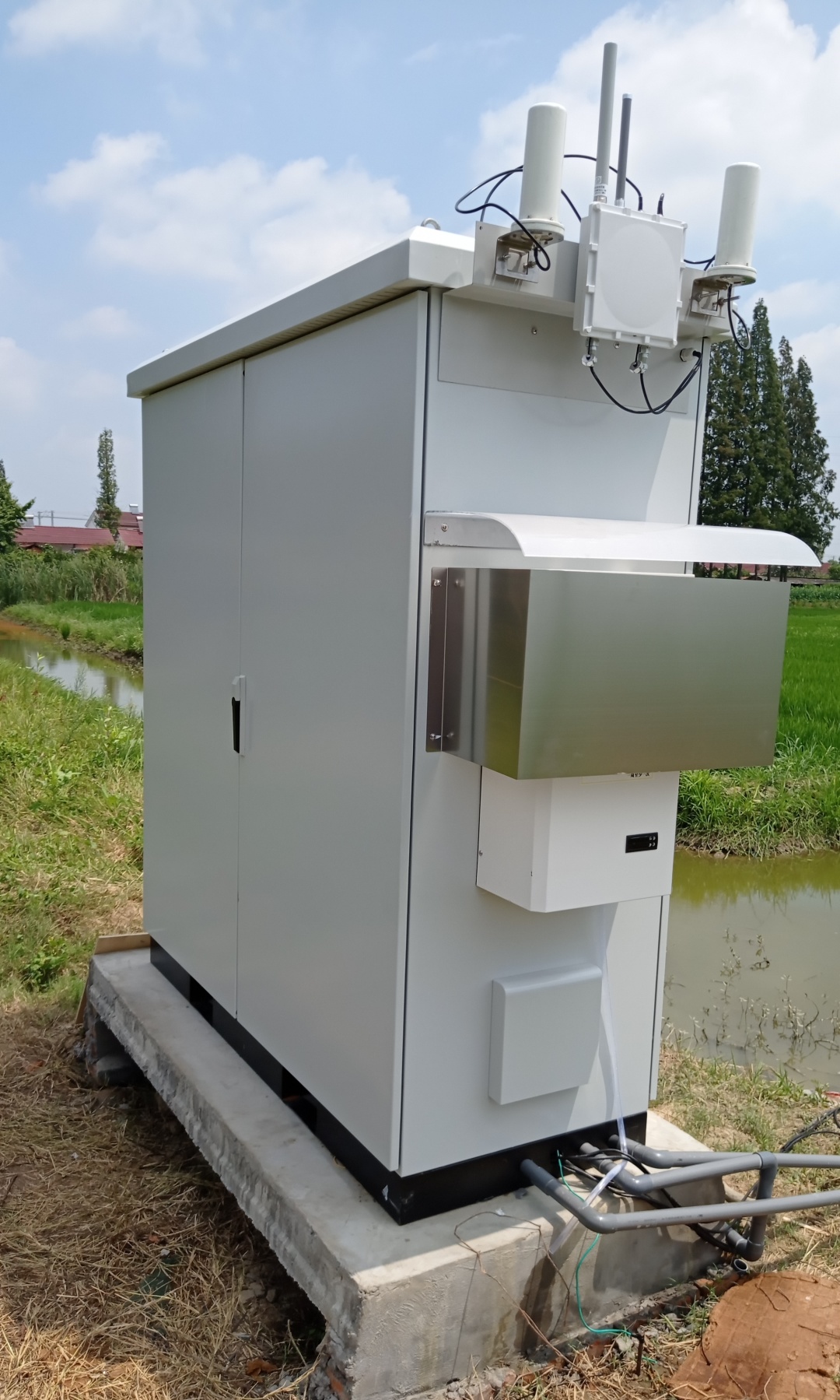

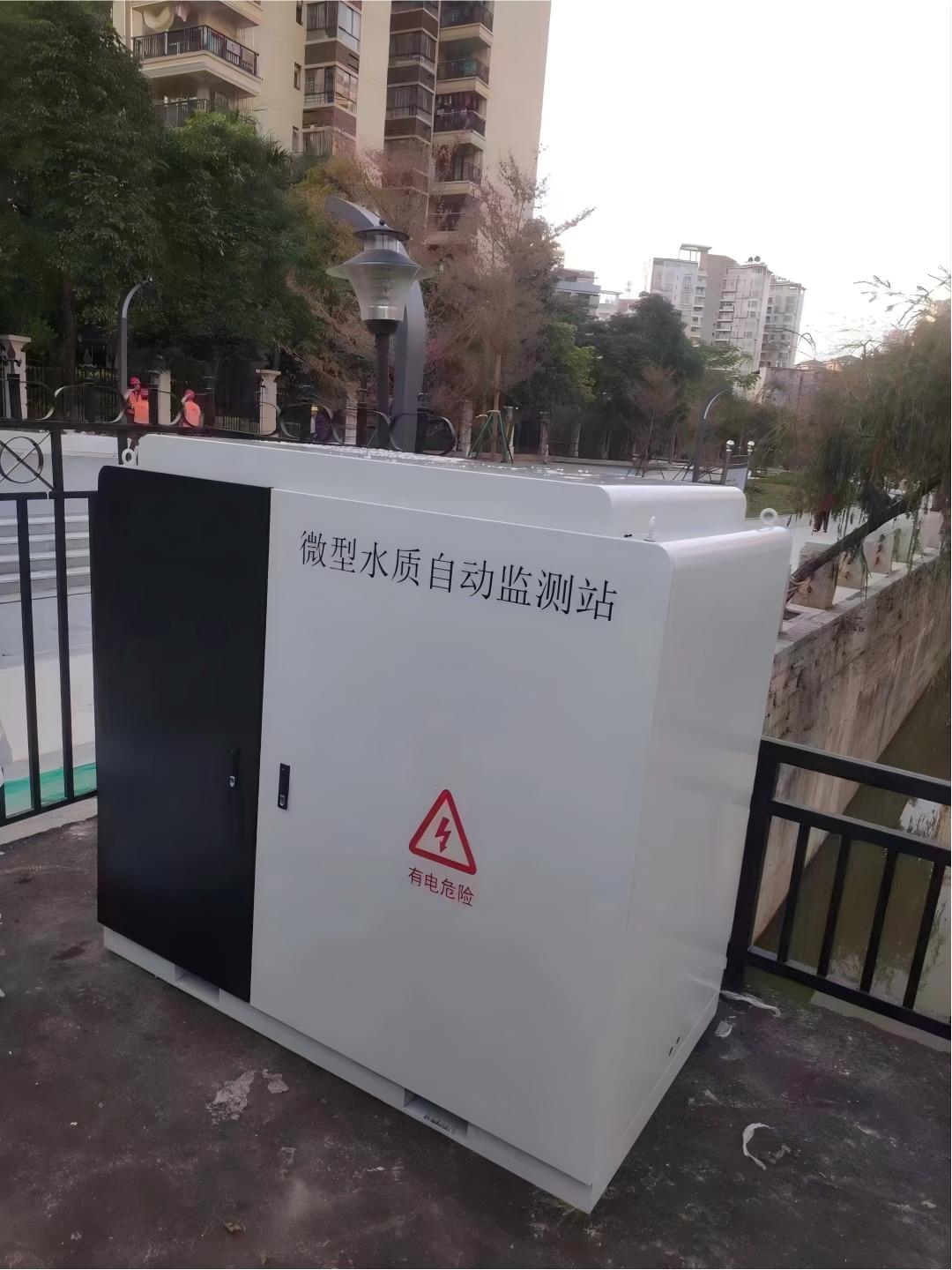

It can be flexibly set up and put into operation quickly, whether near remote mountain rivers or urban lakes, making it ideal for grid-based monitoring deployment across diverse locations.
Robust & Durable Construction
The station housing is typically made of high-quality stainless steel or high-strength engineering plastics, offering excellent corrosion and impact resistance. It maintains stable operation even in harsh natural environments like heavy rain, sandstorms, and high temperatures, ensuring long-term reliability.
With a protection rating of IP65 or higher, it effectively prevents dust and water ingress, providing reliable protection for the internal precision instruments and demonstrating its strong environmental adaptability.
Core Functions & Capabilities
Multi-Parameter Real-Time Monitoring
Equipped with a series of advanced water quality sensors for simultaneous real-time monitoring of multiple key parameters. Common parameters include pH, Dissolved Oxygen (DO), conductivity, turbidity, COD, ammonia nitrogen, total phosphorus, and total nitrogen.
These sensors feature high precision, high sensitivity, and fast response, accurately capturing instantaneous changes in water quality and providing timely data feedback for water quality anomaly alerts.
Automatic Sampling & Intelligent Analysis
The station features an intelligent automatic sampling system that collects representative water samples based on preset time intervals or trigger conditions. The sampling process adheres to relevant standards, ensuring sample authenticity and reliability.
Collected samples pass through an efficient pretreatment unit before precise detection by analytical instruments using spectrophotometry, electrochemistry, and other mature technologies. This automatic operation and maintenance reduces manual intervention and improves system stability.
Data Acquisition & Transmission
A built-in high-performance data acquisition unit collects and processes data from all sensors. Processed data is transmitted in real-time to a remote management platform via GPRS, 4G/5G, Ethernet, or satellite communication, enabling convenient remote data viewing and management.
Intelligent Diagnostics & Alerting
The station features self-diagnostic capabilities, continuously monitoring its operational status. Upon detecting anomalies, an alert mechanism is immediately triggered via SMS, email, or APP push notifications, enabling prompt maintenance to ensure monitoring continuity.
Key Technical Specifications
| Parameter | Description / Capability |
|---|---|
| Detection Parameters | pH, DO, Conductivity, Turbidity, COD, Ammonia Nitrogen, Total Phosphorus, Total Nitrogen |
| Communication Interfaces | GPRS, 4G/5G, Ethernet, Satellite Communication |
| Protection Rating | IP65 or higher |
| Analysis Methods | Spectrophotometry, Electrochemistry, Ion-Selective Electrode |
| Key Features | Automatic Sampling, Self-Cleaning, Self-Calibration, AI Analysis, Grid Deployment Support |
Application Fields
Comprehensive Water Quality Monitoring Solutions

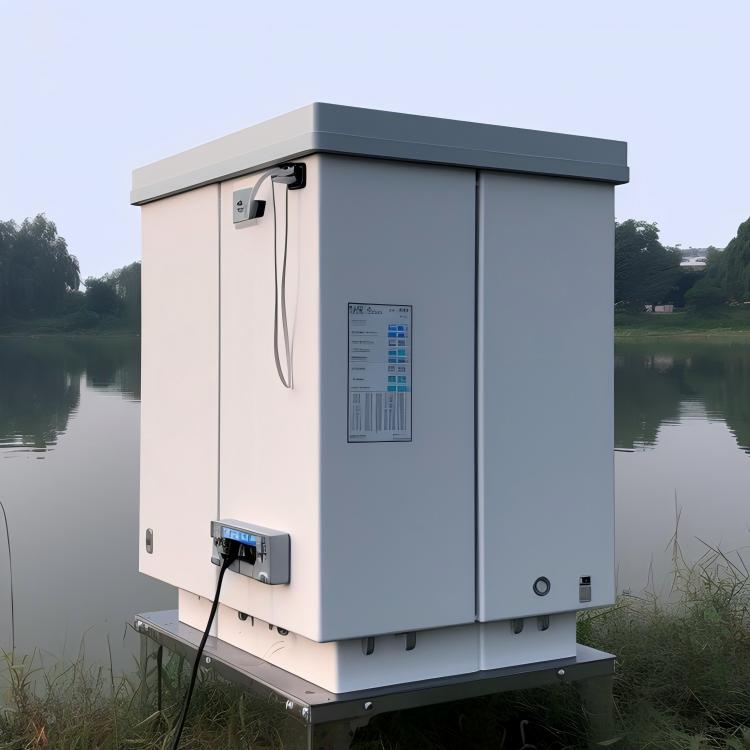

Environmental Monitoring Agencies use it for long-term, continuous monitoring of natural water bodies like rivers and lakes to track dynamic changes, providing a scientific basis for water environment assessment and pollution source tracing.
Water Resources Departments rely on its real-time data for water resource management and allocation to ensure water supply safety and support sustainable development planning.
Water Treatment Plants conduct real-time monitoring of raw and finished water to strictly control quality and ensure safe drinking water, enabling timely detection of anomalies.
Industrial & Research Applications

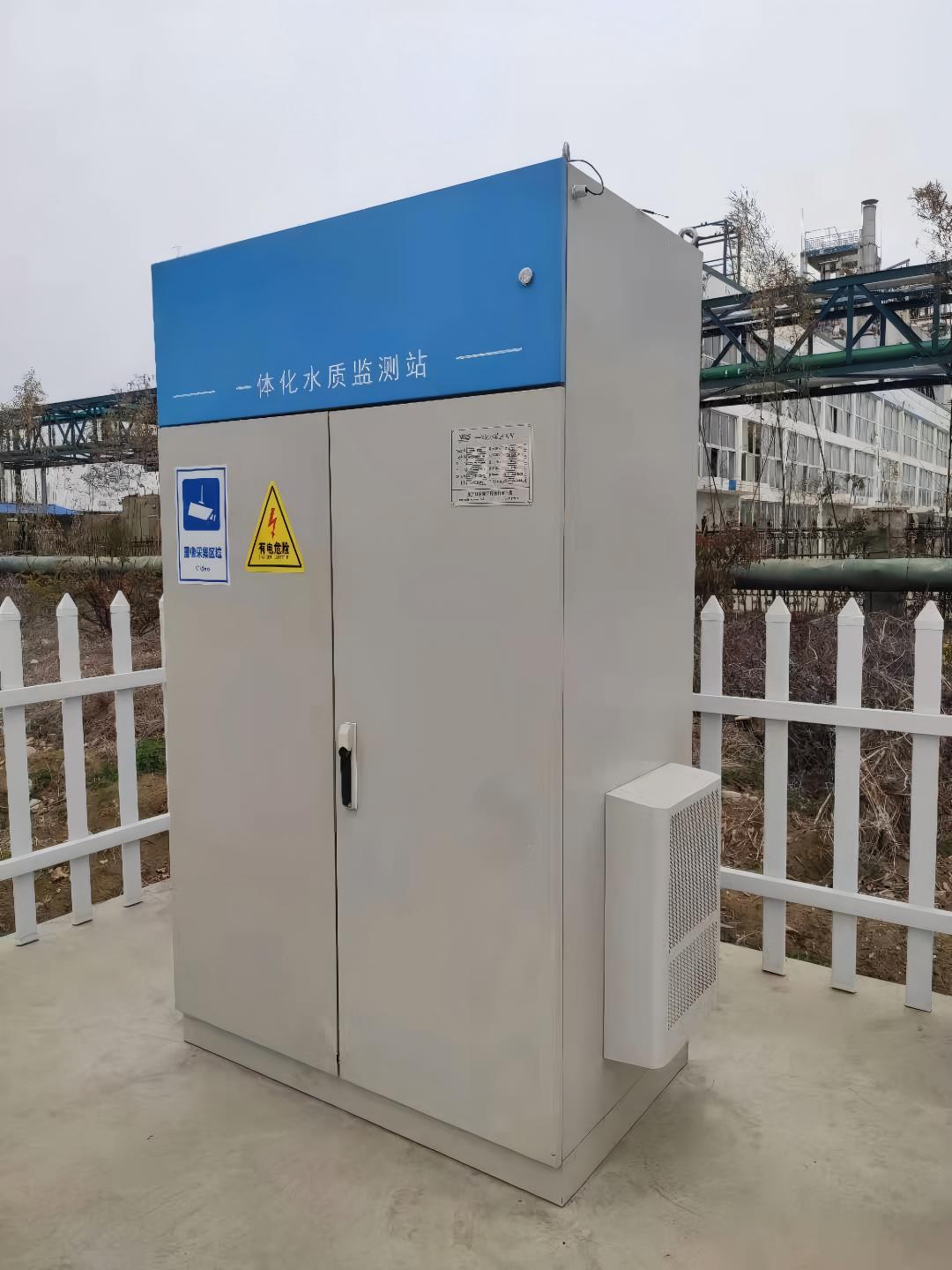

Industrial Enterprises use the station for monitoring effluent quality from wastewater treatment to ensure compliant discharge and to understand the impact on the surrounding water environment.
Research Institutions benefit from its accurate, real-time data for water quality-related research projects, studying change patterns and pollution mechanisms to advance protection technologies.
Grid-Based Deployment for Watersheds
Designed based on watershed characteristics, the Compact Water Quality Monitoring Station supports grid-based deployment of micro-stations. Combined with big data technology, it provides refined technical support for water environment assessment, early warning, regulation, and performance evaluation.
Product Features Summary
High Integration
Integrates multiple instruments into a compact enclosure with a small footprint for easy installation.
Diverse & Precise Detection
Simultaneously detects multiple conventional parameters with high-precision sensors and algorithms.
Real-Time & Intelligent
Features real-time data transmission, AI analysis for anomaly alerts, and automatic self-diagnostics.
Robust & Automated
Offers strong environmental adaptability with automatic sampling, cleaning, and calibration functions.
