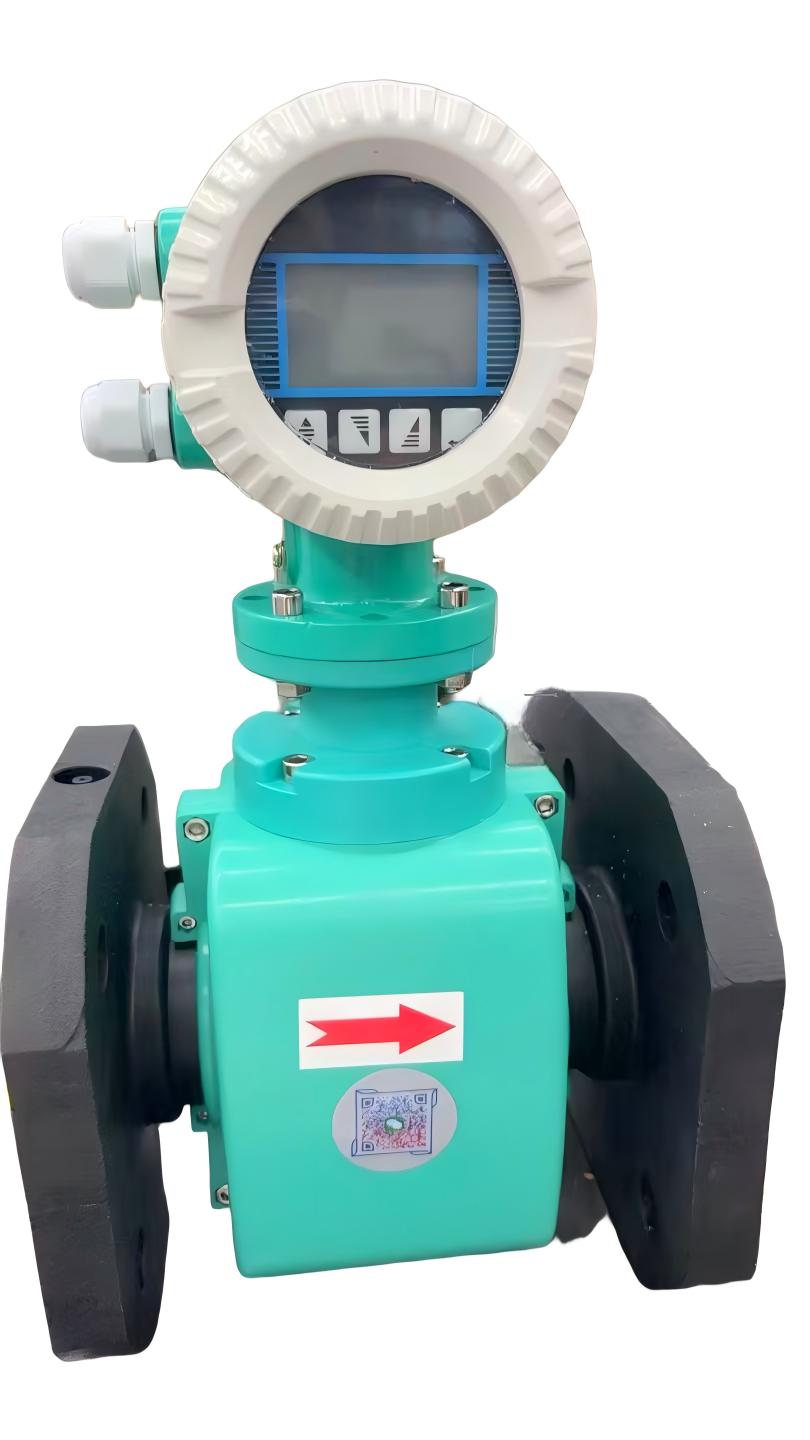

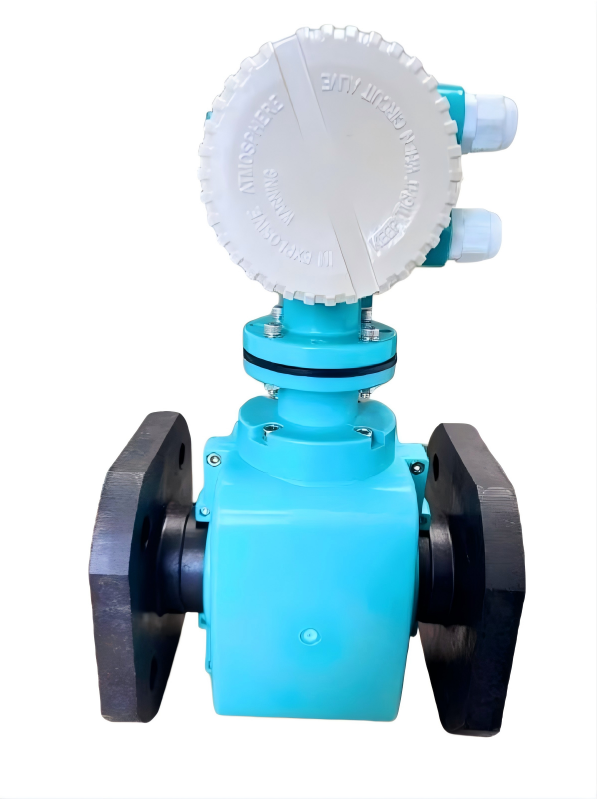

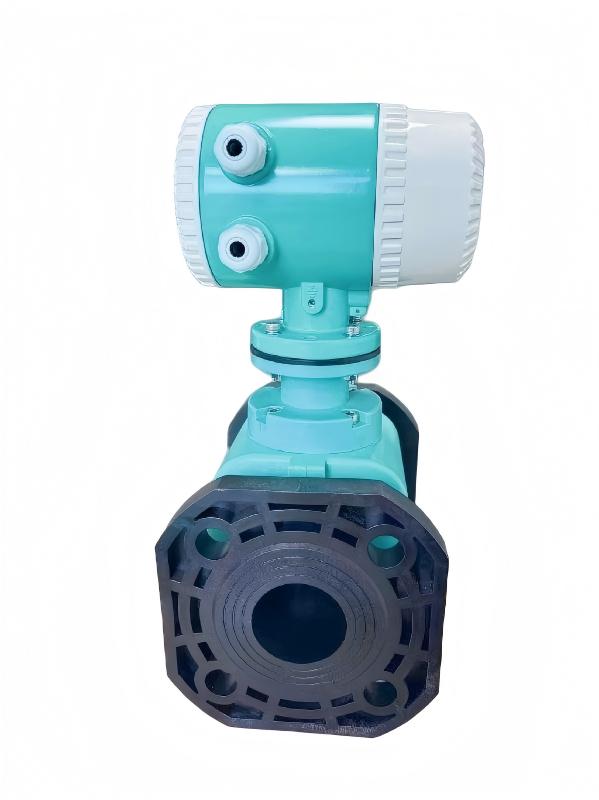

Integrated Electromagnetic Flowmeter
Ecolor's self-developed aerospace polymer material electromagnetic flowmeter is suitable for flow measurement and control in industrial and agricultur...
Key Features
Key Features
Integrated Electromagnetic Flowmeter

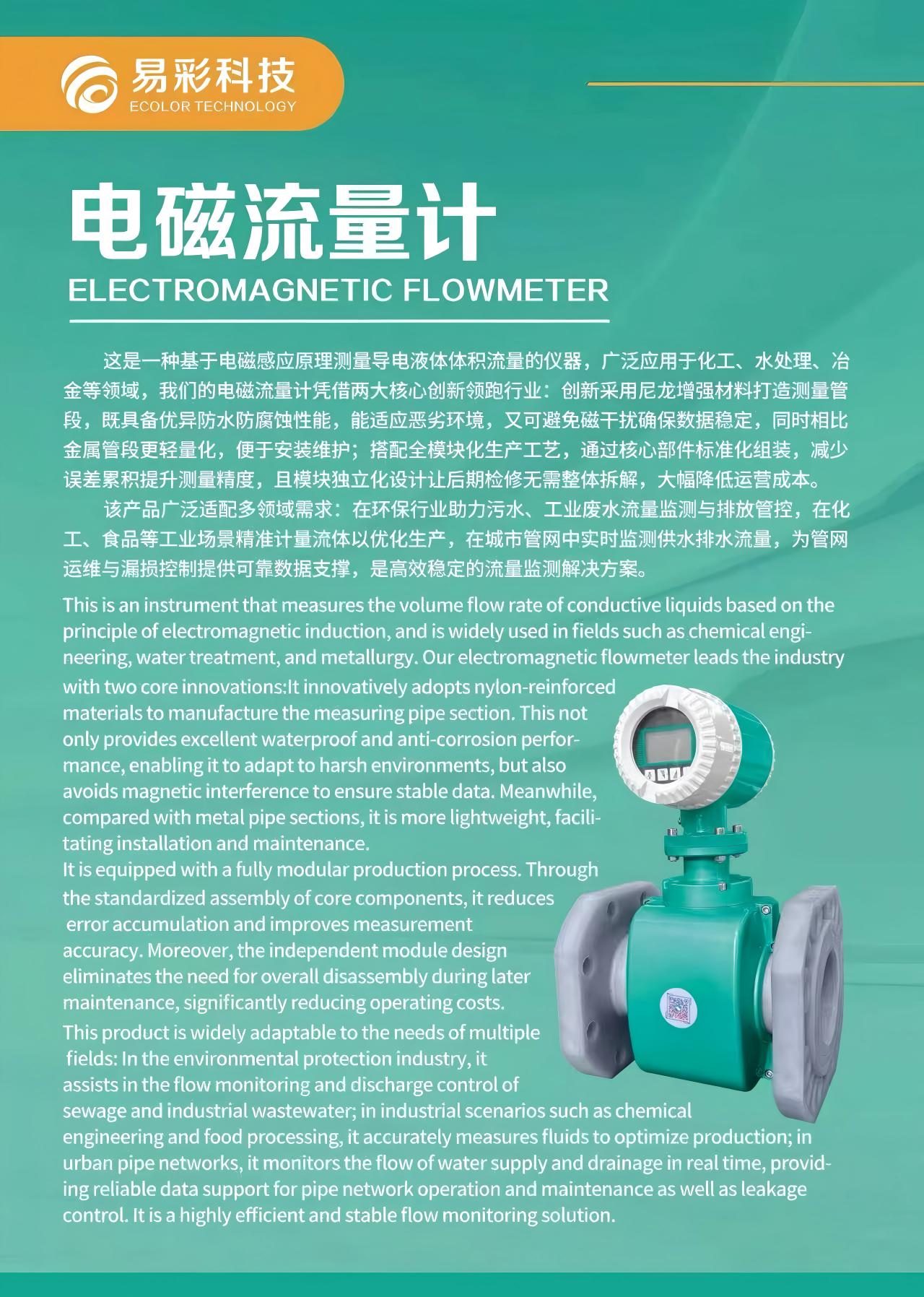

The Integrated Electromagnetic Flowmeter is a high-performance instrument for measuring the volumetric flow rate of conductive liquids based on the principle of electromagnetic induction. It is widely used in chemical, water treatment, metallurgy, and other industrial fields, offering a reliable and efficient flow monitoring solution.
Core Innovations of the Electromagnetic Flowmeter
Our electromagnetic flowmeter leads the industry with two core innovations. The first is the use of LGF-PA66 aerospace-grade reinforced composite material to construct the measuring tube section, providing excellent waterproof and anti-corrosion performance for harsh environments.

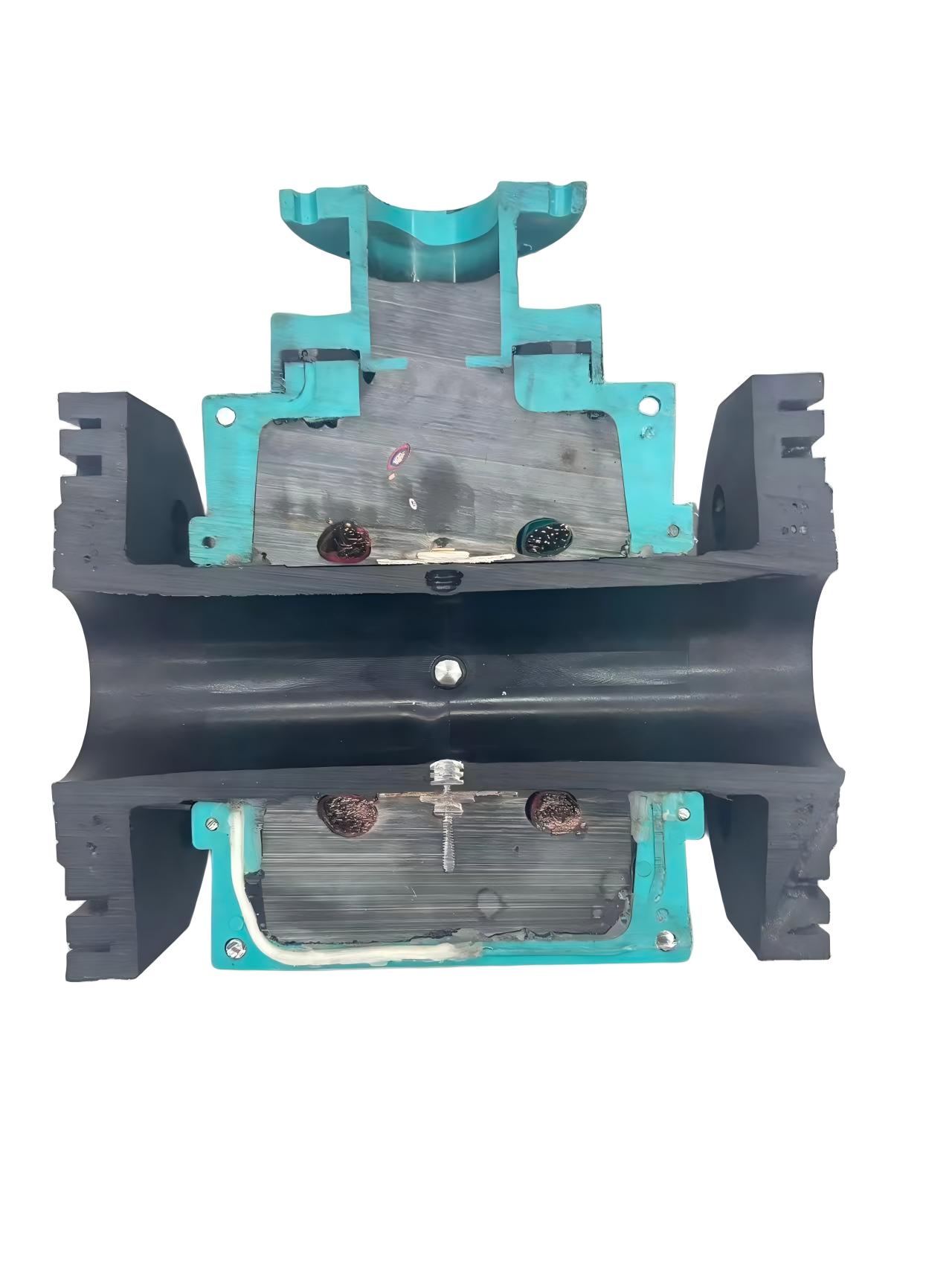

The second innovation is the integrated mold-casting process for the sensor. Measuring electrodes are directly embedded during injection molding, and the coil excitation part is a standardized module. This fully modular production process reduces error accumulation and improves measurement accuracy.
Key Advantages & Product Features
High Accuracy & Stability
Advanced self-developed meter head algorithm ensures accurate, stable data with ±0.2% accuracy, unaffected by fluid property changes.
Robust & Corrosion Resistant
LGF composite material and IP67 waterproof rating enable stable operation in humid, high-pressure, and corrosive environments.
Easy Maintenance & Cost-Effective
Modular coil design allows for quick replacement, saving on operational costs. Lightweight design also facilitates installation.

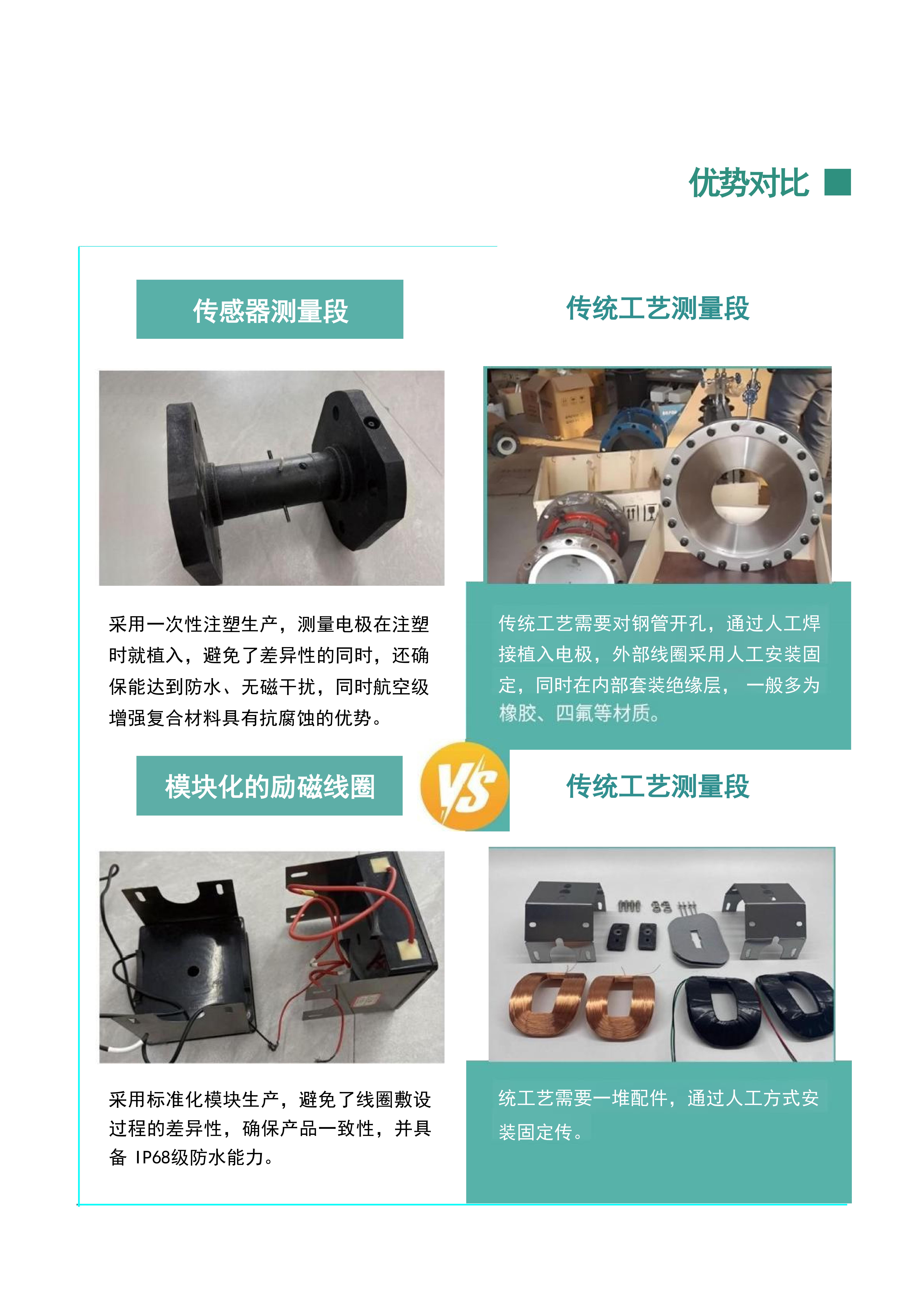

Superior Design for Reliable Flow Measurement
The integrated sensor and measuring section structure has no connection gaps, completely eliminating leakage risks and ensuring more reliable long-term equipment operation. The innovative one-shot injection molding process with implanted electrodes offers excellent waterproof and corrosion-resistant performance.
The modular excitation coil design effectively reduces deviation during coil laying, ensuring excellent product consistency and minimal performance fluctuation during batch use. This reduces the need for on-site calibration for customers.
Wide Application in Industrial Scenarios
This electromagnetic flowmeter is widely adaptable to multi-domain needs. In the environmental protection industry, it assists in sewage and industrial wastewater flow monitoring and discharge control.
In industrial scenarios such as chemical and food processing, it precisely measures fluids to optimize production. In urban pipeline networks, it provides real-time monitoring of water supply and drainage flow, offering reliable data support for operation and maintenance.
Technical Specifications and Performance
The flowmeter features an LCD backlit display on the converter, easy to read under direct sunlight or in dark rooms. The converter includes self-diagnostic alarm output, no-load detection, flow upper/lower limit alarms, and batch control functions.
| Measurement Principle | Electromagnetic Induction |
| Primary Material | LGF-PA66 Aerospace-Grade Reinforced Composite |
| Accuracy | ±0.2% |
| Ingress Protection | IP67 |
| Pressure Loss | None (No obstructing flow components) |
| Key Process | Integrated Mold-Casting, CNC Integrated Forging |
Durable Construction for Harsh Environments
With its IP67 top-level waterproof design and CNC integrated forging process, this flowmeter can operate stably in humid or water-immersed conditions while withstanding long-term exposure to high pressure and corrosive media.
The dual waterproof sealing structure combined with precision assembly not only provides outstanding waterproof performance but also achieves the high measurement accuracy of ±0.2%, perfectly balancing durability and precision for industrial site applications.
Operational Benefits and Cost Efficiency
While ensuring high performance, the manufacturing costs of this integrated electromagnetic flowmeter are significantly optimized, offering extremely high cost-effectiveness. The production cycle is short, and delivery efficiency is high, enabling quick response to large-volume order demands.
Compared to traditional metal flowmeters, it is lighter in weight and has stronger corrosion resistance, making it widely suitable for chemical, water treatment, food, and other industries. It provides outstanding comprehensive usage benefits for flow monitoring and control.
