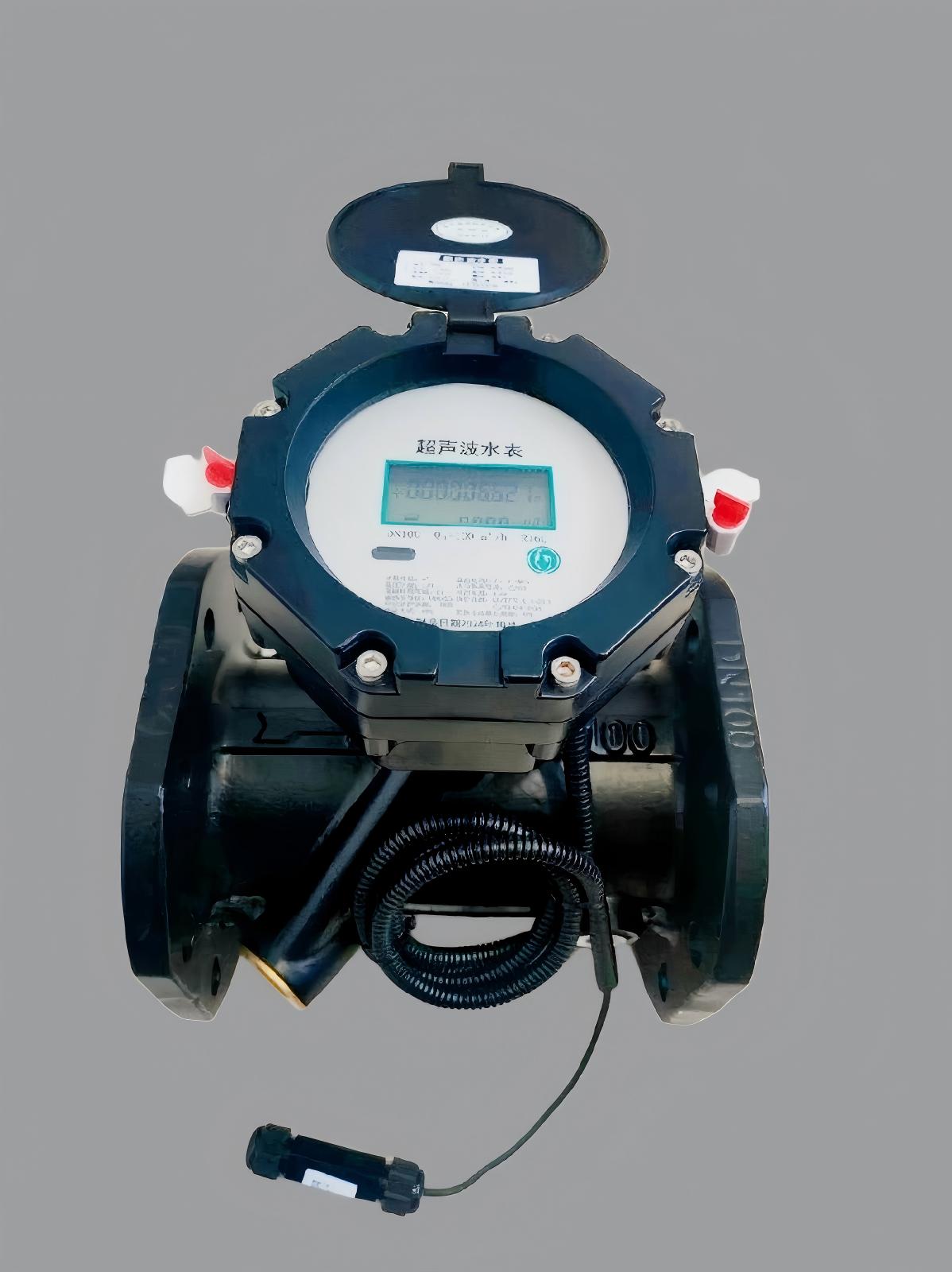

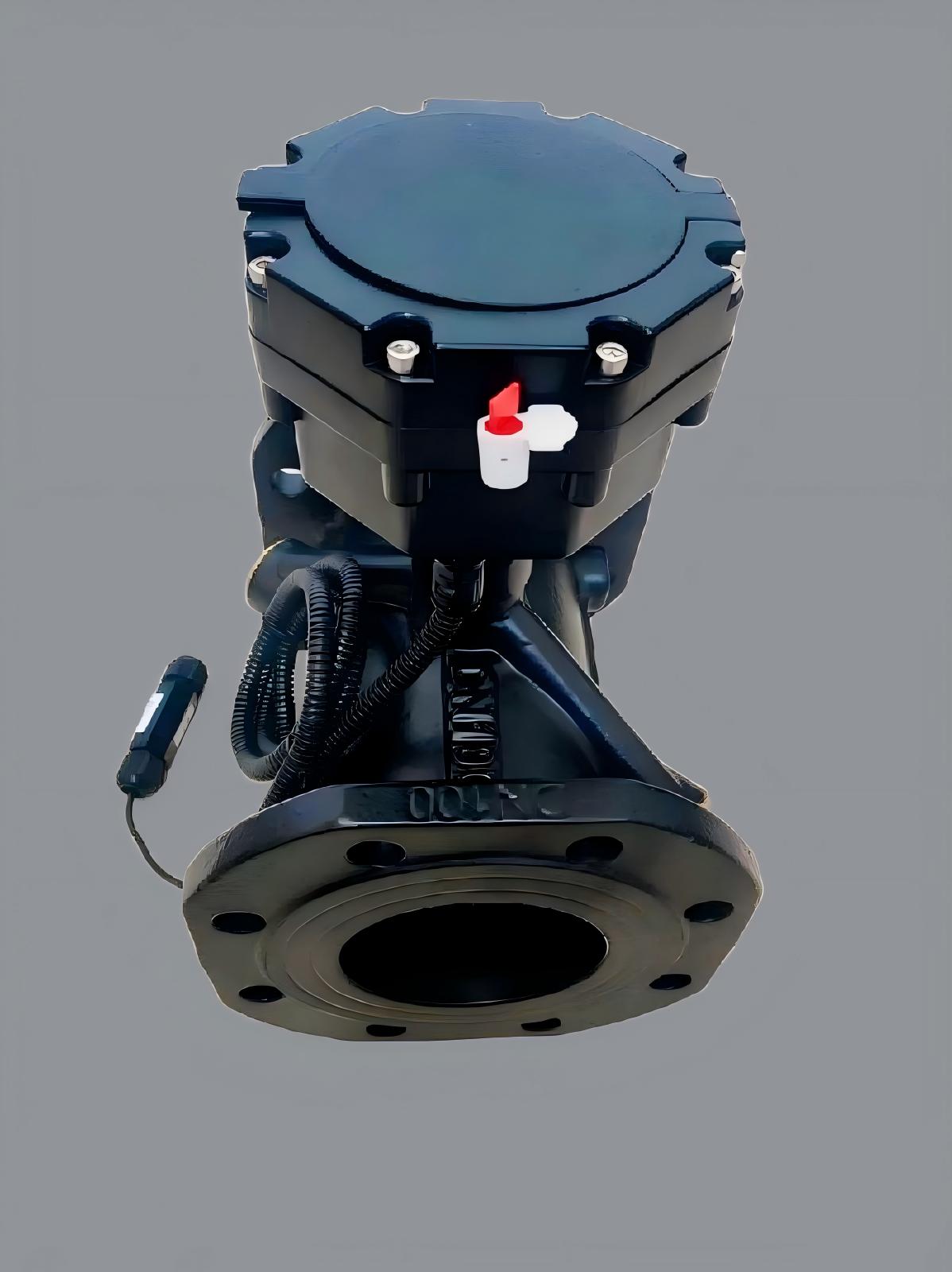

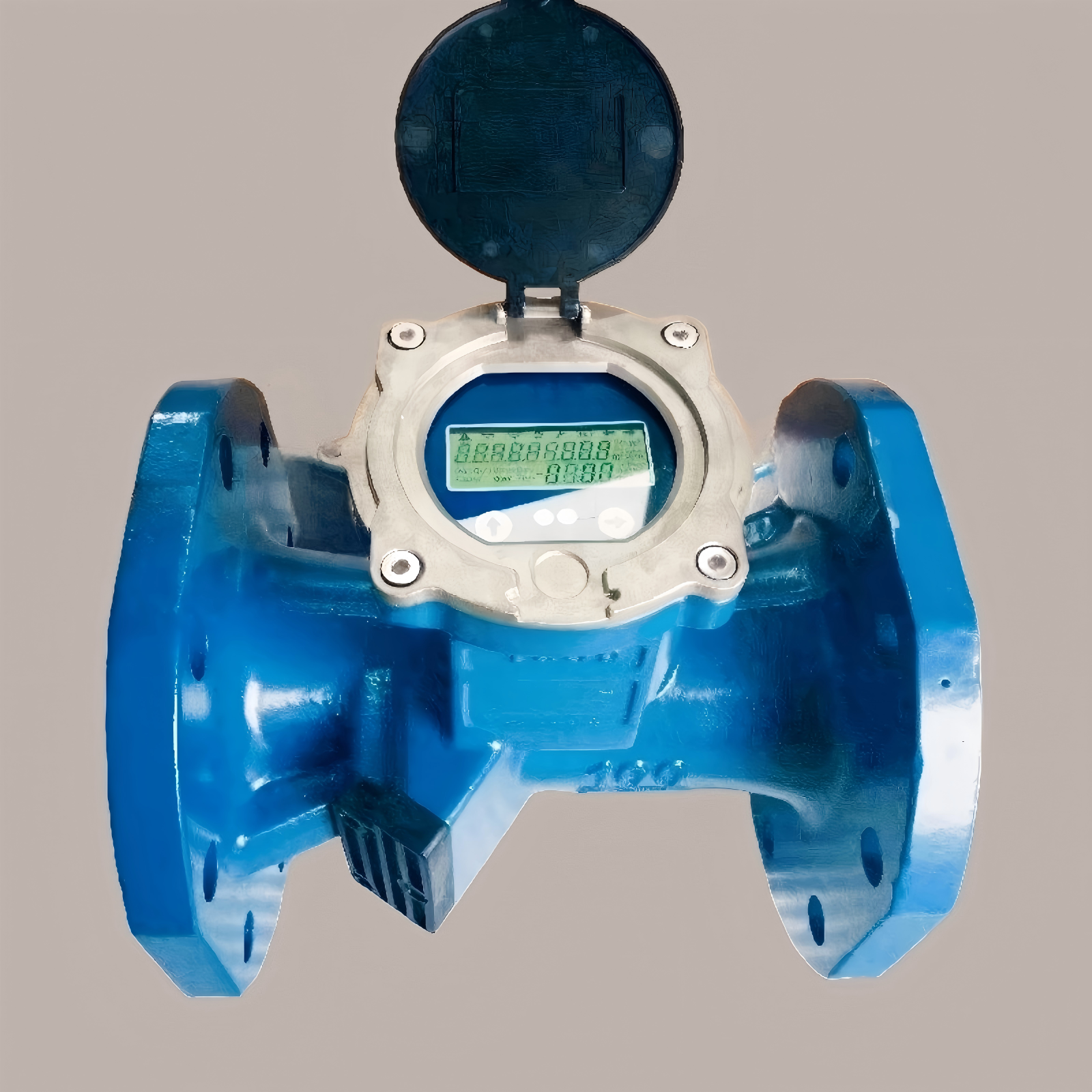

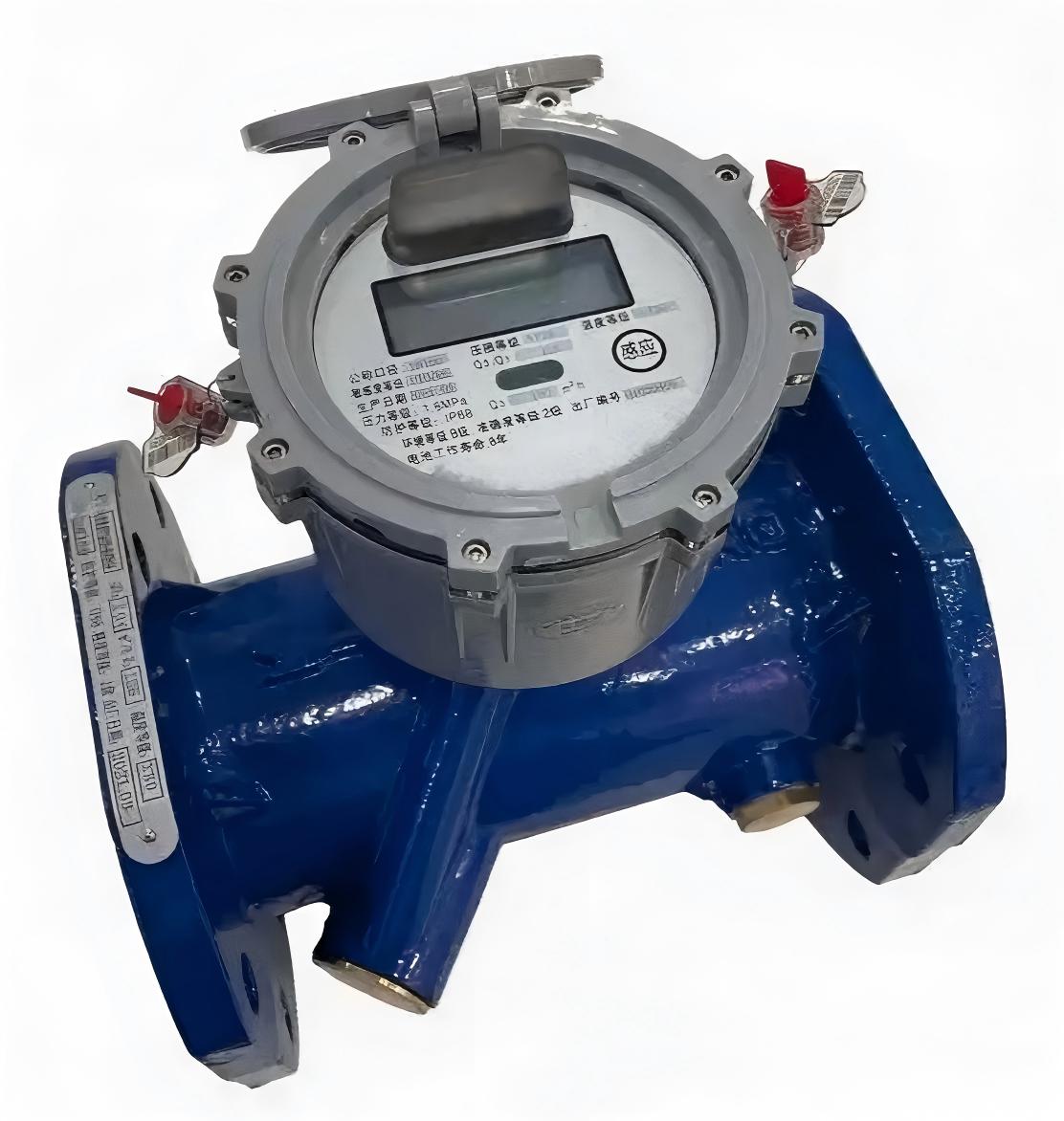

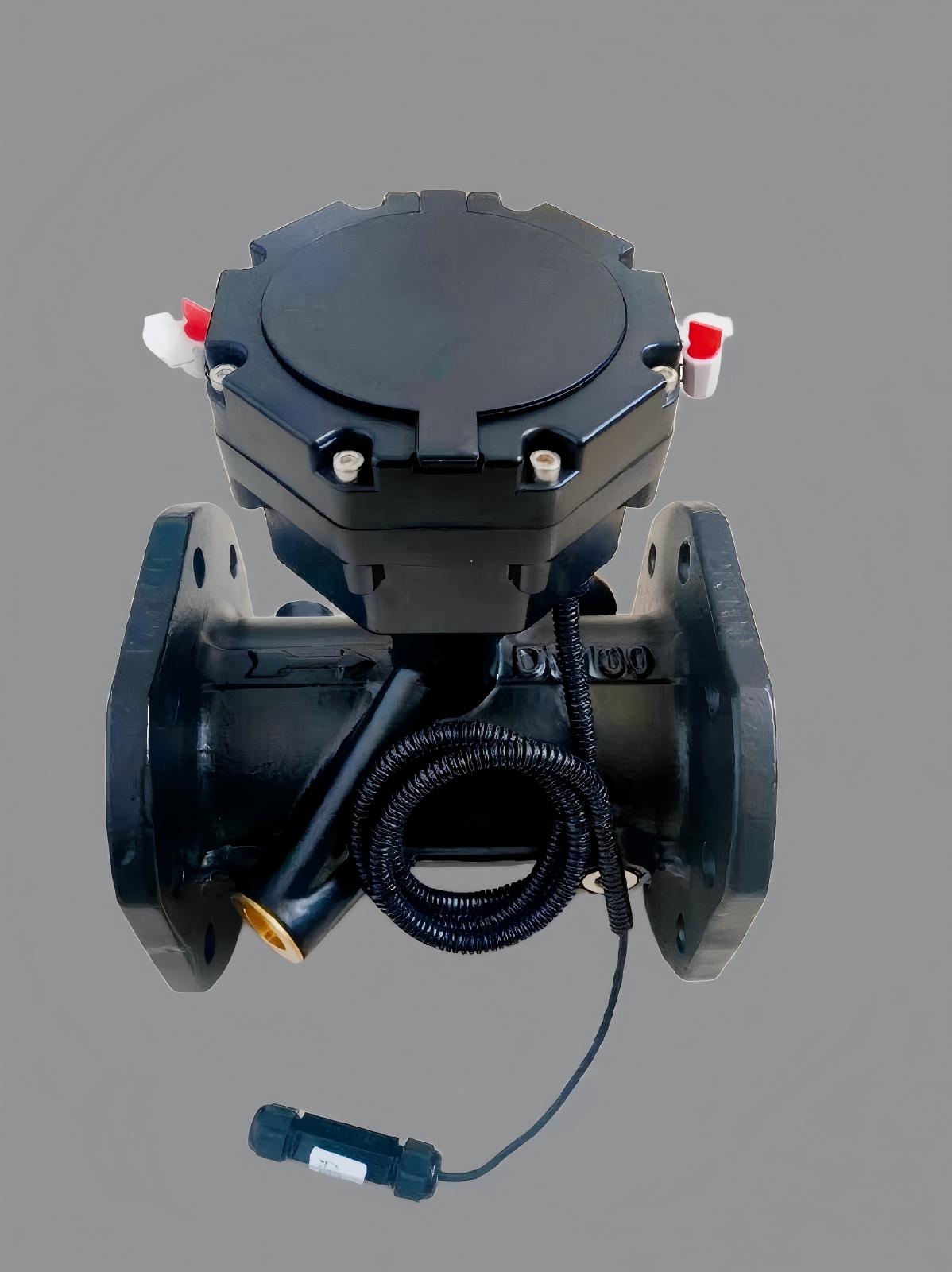

Ultrasonic Water Meter
The ultrasonic water meter is a new type of water meter that measures and displays flow based on the ultrasonic time-difference principle. It comes st...
Key Features
Performance Metrics
| Downstream Flow Profile Sensitivity Class | D3 |
| LCD Display Digits | 8 digits for below DN50, 9 digits for DN50 and above |
| Static Operating Current | <6uA |
| Accuracy Class | Class 2 |
Key Features
Ultrasonic Water Meter
The Ultrasonic Water Meter is an advanced flow measurement device that utilizes ultrasonic technology to calculate water flow velocity by measuring the time difference of ultrasonic wave propagation between downstream and upstream directions. This non-invasive method provides highly accurate and reliable water consumption data for a wide range of applications, from residential to industrial use.
Structure of the Ultrasonic Water Meter
The meter is engineered with a robust and intelligent structure. Its core components work in harmony to deliver precise and stable flow measurement under various conditions.
- Meter Body
- Constructed from corrosion-resistant materials to ensure smooth water flow and long-term durability, clearly marked with all necessary specifications and parameters.
- Ultrasonic Transducer
- Converts electrical energy into ultrasonic energy and vice versa. At least two transducers are used for transmitting and receiving signals to enable accurate flow velocity calculation.
- Signal Processing Unit
- Processes weak ultrasonic signals, calculates the time difference to obtain flow velocity, and includes data validation, error correction, and a powerful microprocessor.
- Data Storage & Display Unit
- Stores historical flow data securely. A high-definition LCD displays real-time and historical information, featuring reliable power-off protection.
Key Performance Features
High Accuracy and Wide Turndown Ratio
This ultrasonic flow meter provides precise measurement, completely unaffected by impurities or vibration in the pipeline, achieving an accuracy of Class 1 or Class 2. Its wide turndown ratio allows it to adapt seamlessly to both high and low flow rates, preventing under-registration and overload.
High Reliability
With no moving mechanical parts, there is zero wear, ensuring long-term stability and a long operational lifespan. The durable housing is resistant to harsh environmental conditions.
Intelligence & Communication
Supports multiple communication protocols, enabling remote monitoring, management, and fault diagnosis for efficient water utility management.
Low Power Consumption
Battery-powered models are designed for ultra-low power consumption, ensuring a long battery life of 6+1 years with a built-in lithium battery.
Advanced Measurement and Diagnostic Technology
The meter employs dual-channel measurement for enhanced accuracy and stability. Its redundant design ensures normal metering continues even if one channel is blocked or malfunctions.
Comprehensive self-diagnostic functions provide immediate alerts for issues such as flow sensor faults, temperature sensor open/short circuits, over-range measurement, and low battery, ensuring reliable operation.
Technical Specifications & Options
| Feature | Description |
|---|---|
| Display | High-definition, wide-temperature 9-digit LCD display. |
| Power Supply | Selectable: 1) Built-in lithium battery (default, 6+1 years) 2) M-BUS bus power 3) External DC 7.5～24V. |
| Communication | Optical interface (IR). Optional wired (M-BUS, RS-485) or wireless (LoRa). Optional IoT modules (GPRS/NB-IoT). |
| Measurement | Bidirectional (forward/reverse flow). Advanced flow algorithms with intelligent data error correction. |
| Management | Supports remote data reading and configuration for centralized water meter management. |

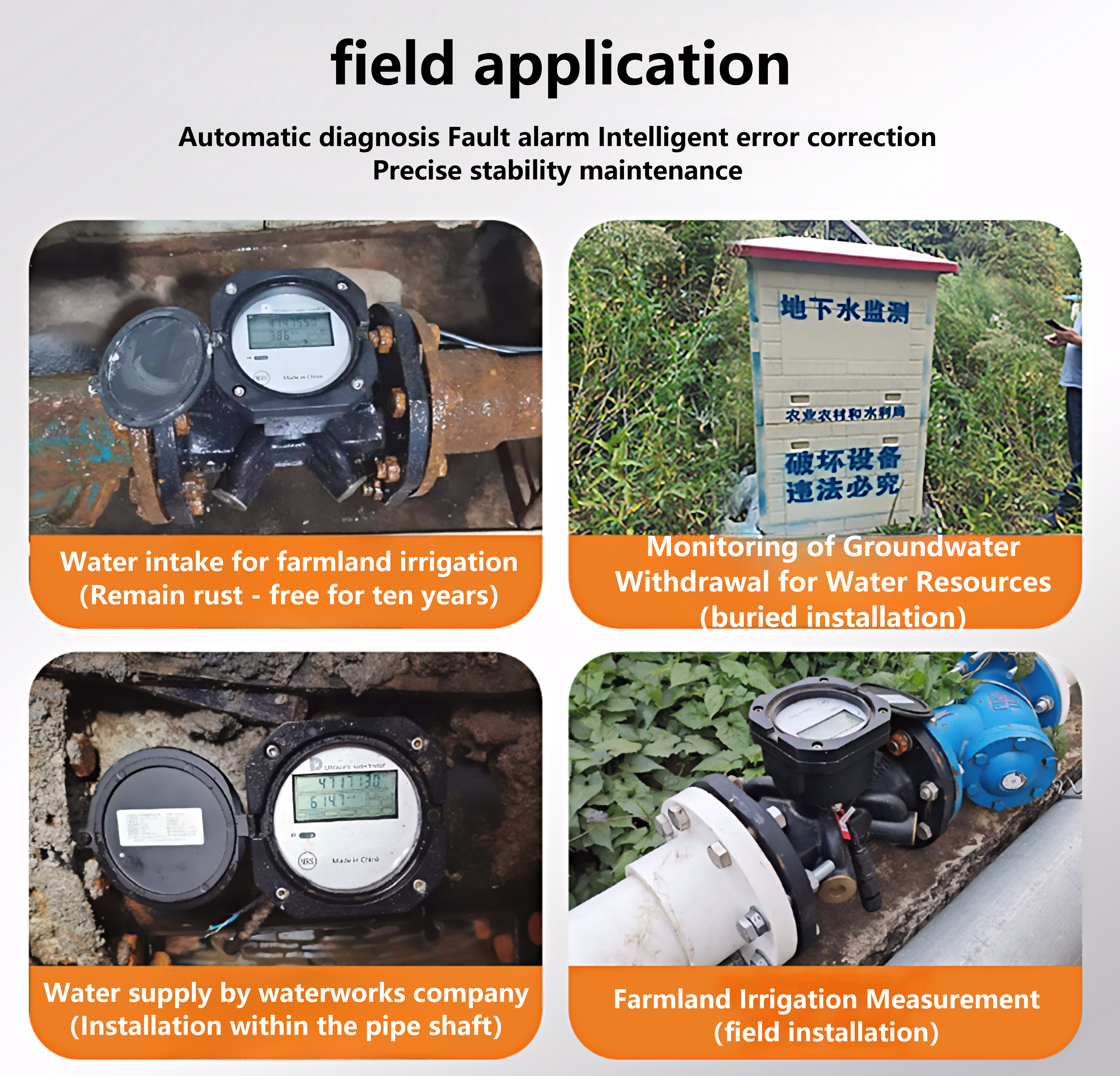

Application Fields for Ultrasonic Water Meters
The versatility and reliability of ultrasonic water metering technology make it ideal for diverse sectors requiring accurate water usage monitoring and management.
Residential and Commercial Water Supply
In residential areas, these meters provide precise metering for individual households, facilitating easy meter reading and accurate water bill calculation. For commercial buildings like shopping malls and offices, they enable reasonable water cost allocation and adapt well to complex installation environments.
Industrial, Municipal, and Agricultural Use
For industrial water use, ultrasonic meters assist enterprises in rigorous water usage monitoring and cost control, and can be seamlessly integrated into automation systems. In municipal water supply networks, they are crucial for monitoring pipeline flow and aiding in intelligent water resource allocation and management.
In agricultural irrigation, the precise metering capability of ultrasonic technology enables significant water conservation and supports rational, data-driven irrigation practices.
