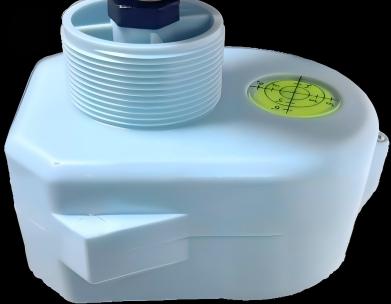

Smart Urban Pipe Network Monitoring: How 80G Visual Radar Level Sensors Enable Precision Flood Warning
The 80G Visual Radar Level Gauge represents a breakthrough in urban pipeline network monitoring, enabling precise flood warning systems. As cities expand, traditional monitoring methods fail to meet modern demands, leading to significant economic losses from waterlogging disasters. This non-contact solution combines radar and visual data to transform urban water management.
Pain Points and Challenges in Urban Pipeline Network Monitoring
With the acceleration of urbanization, the scale of underground drainage networks continues to expand, and urban waterlogging issues are becoming increasingly prominent. According to data from the Ministry of Housing and Urban-Rural Development, by 2025, over 60% of cities nationwide have experienced varying degrees of waterlogging disasters.
Limitations of Traditional Contact Sensors
Traditional contact-type level gauges, such as float-type and submersible pressure sensors, face numerous challenges in underground pipeline network environments. These methods can no longer meet the demands of modern urban refined management.
Fouling and Clogging
Debris and grease in the pipeline network easily clog the sensor probe, leading to measurement inaccuracies.
Frequent Maintenance
Manual probe cleaning is required every 1-3 months, resulting in high maintenance costs.
Severe Corrosion
Sensor lifespan is significantly shortened in acidic or alkaline environments, typically not exceeding 2 years.
Lack of Visualization
Only data without visual feedback, making it impossible to assess actual conditions like blockages or overflows.
Non-Contact Monitoring: The Technological Breakthrough of 80G FMCW Visual Radar Level Gauges
Ecolor Technology's independently developed 80G Visual Radar Level Gauge utilizes 80GHz FMCW (Frequency Modulated Continuous Wave) radar technology combined with a high-definition camera. This innovative approach completely addresses the pain points of traditional solutions for precision flood warning.
Core Technical Parameters and Specifications
The following table compares the key specifications of the 80G Visual Radar Level Gauge against traditional submersible level gauges.
| Parameter | 80G Visual Radar Level Gauge | Traditional Submersible Level Gauge |
|---|---|---|
| Measurement Principle | 80GHz FMCW Radar (Non-contact) | Pressure Sensor (Contact-type) |
| Measurement Accuracy | ±1mm | ±5-10mm |
| Measuring Range | 0-65m | 0-10m |
| Protection Rating | IP68 | IP68 |
| Camera Included | ✅ High-definition Video | ❌ None |
| Maintenance Cycle | Maintenance-free for 2 years | Cleaning required every 1-3 months |
| Service Life | >5 years | 1-2 years |
| Power Consumption | Ultra-low power, battery life >2 years | Requires continuous power supply |
Unique Advantages of Visual Fusion Technology
Unlike conventional radar level gauges, Ecolor Technology's Visual Radar Level Gauge innovatively integrates a high-definition camera. This achieves dual verification of "data + visuals" for superior urban pipeline network monitoring.
Real-time Condition Transmission
Remotely view the actual internal conditions of the pipeline network, ending "blind management" of drainage systems.
AI Image Recognition
Automatically identifies anomalies such as blockages, floating debris, and pipe wall damage for proactive maintenance.
Evidence Archiving
Video records of emergency events provide a reliable basis for emergency response and post-event analysis.
Solves Industry Challenges
Addresses the critical industry pain point of "managing only data, not the actual site" for flood warning systems.
Urban Pipeline Network Deployment Solution
Typical Installation Scenarios
The 80G Visual Radar Level Gauge is suitable for various critical nodes in urban drainage networks, forming a comprehensive precision flood warning system.
- Main Drainage Pipeline Lines: Monitors water levels in main pipelines, providing early warning of overflow risks.
- Pump Station Inlets/Outlets: Real-time monitoring of pump station operating water levels for automatic start/stop control.
- Flood-prone Waterlogging Points: Early warning for key areas like low-lying roads and underpass tunnels.
- River Inlets: Outfall monitoring to prevent direct sewage discharge into waterways.
Complete System Architecture
Paired with Ecolor Technology's HERO V9 Series RTU Telemetry Terminal, a comprehensive intelligent urban pipeline network monitoring system can be constructed.
80G Visual Radar Level Gauge + LGF Electromagnetic Flowmeter
HERO V9 RTU (4G/NB-IoT/LoRa)
Cloud data, AI analysis, GIS visualization
Real-time mobile alerts, automatic work orders
Actual Application Results and Performance
In multiple deployed urban pipeline network projects, the 80G Visual Radar Level Gauge has demonstrated excellent performance, validating its role in effective urban pipeline network monitoring.
Improved from 30 minutes
In equipment maintenance
Monitoring accuracy rate
In maintenance dispatch
Selection Advice and Consultation
If you are planning an intelligent urban pipeline network monitoring project or need to upgrade existing level monitoring equipment for better precision flood warning, please feel free to contact Ecolor Technology for a customized solution.
Transform your urban water management with non-contact, visual radar technology.
