Drainage Pipeline Flow and Velocity Online Monitoring System Solution

Multi-band Doppler radar flowmeter-based drainage pipeline monitoring solution for real-time non-contact measurement of flow rate, velocity, and water level in underground manholes.

Overview

Summary

Multi-band Doppler radar flowmeter-based drainage pipeline monitoring solution for real-time non-contact measurement of flow rate, velocity, and water level in underground manholes.

Key Advantages

Multi-band Doppler radar non-contact measurement, unaffected by sewage corrosion or debris

Integrated radar + camera design for “see what you measure” monitoring

Adaptive measurement across partial pipe, full pipe, and backflow conditions

IP68 protection rating for high-humidity, corrosive manhole environments

4G/5G + BeiDou dual-channel remote data transmission

Solar + lithium battery dual power supply, no external power needed for manholes

GIS map visualization for comprehensive network status overview

Challenges

Lack of real-time flow data in drainage networks, invisible operational status
Traditional contact-type flowmeters prone to clogging and corrosion in sewage pipes
Limited space and harsh environment inside manholes make device installation difficult
Large variations in pipe fill ratio cause significant measurement errors in conventional devices
No visual aids to assess pipeline sediment accumulation or blockages remotely

Results

Real-time visualization of network operation, eliminating blind-spot management
Non-contact measurement extends maintenance-free cycles to over 2 years
Adaptive measurement from partial to full pipe conditions with ±1% accuracy
HD camera enables remote inspection of manhole conditions and blockage diagnosis
Data-driven drainage scheduling optimization reduces overflow risk by over 30%

Solution Details

Drainage Pipeline Flow and Velocity Online Monitoring System Solution

The Drainage Pipeline Flow and Velocity Online Monitoring System Solution provides real-time, non-contact monitoring for urban drainage networks, delivering critical data for flood control and water environment management. This advanced solution overcomes the limitations of traditional manual inspections by offering continuous, precise, and visual oversight of pipeline conditions.

Overcoming Traditional Monitoring Limitations

Urban drainage networks are vital infrastructure that directly impacts flood control and water environment management. Traditional manual inspection methods suffer from incomplete coverage, poor timeliness, and data gaps.

These outdated approaches fail to meet modern precision management requirements for municipal and industrial drainage systems, creating a need for automated, reliable online monitoring.

Core System Technology and Components

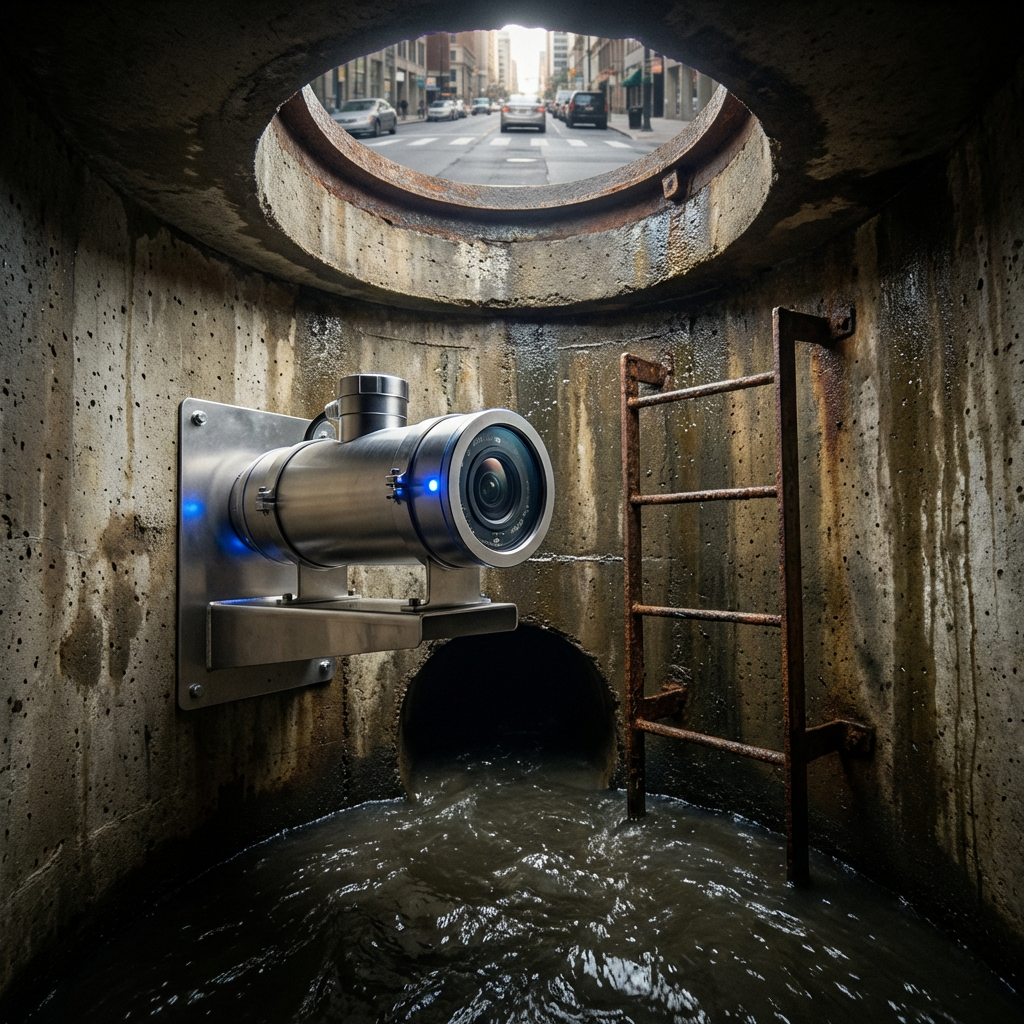

This solution deploys multi-band Doppler radar flowmeters inside drainage manholes for real-time non-contact monitoring of pipeline flow rate, velocity, and water level. The integrated device combines high-precision Doppler radar sensors with HD cameras.

This enables a unique “see what you measure” visual monitoring approach, providing both quantitative data and visual verification. Combined with RTU (Remote Telemetry Unit) terminals, it builds a complete drainage network online monitoring system for comprehensive oversight.

Key Application Scenarios for Pipeline Monitoring

The drainage pipeline monitoring system is particularly suitable for municipal drainage pipelines, industrial park drainage networks, and critical nodes in combined sewer systems. It provides essential data for network operation scheduling and capacity management.

This solution offers precise data support for discharge permit supervision and overall water environment governance, helping authorities and operators make informed decisions based on real-time flow and velocity data.

Drainage Monitoring System Product Features

Advanced Non-Contact Measurement

Utilizes multi-band Doppler radar for measurement, completely unaffected by sewage corrosion, debris, or sediment buildup within the pipeline.

Integrated Visual Monitoring

Features a combined radar + camera design for “see what you measure” monitoring, providing data validation and visual context of pipeline conditions.

Adaptive Flow Measurement

Accurately measures across all flow conditions including partial pipe flow, full pipe flow, and challenging backflow scenarios.

Rugged Environmental Protection

Rated IP68 for complete protection against dust and long-term immersion, built for high-humidity, corrosive manhole environments.

Dual-Channel Data Transmission

Incorporates 4G/5G cellular + BeiDou satellite dual-channel remote data transmission for reliable communication in diverse locations.

Independent Power Supply

Solar + lithium battery dual power supply system requires no external power connection, enabling installation in any manhole location.

Comprehensive Network Visualization

GIS map-based platform provides visualization of the entire drainage network status, offering operators a complete overview of system performance.

System Specifications and Technical Parameters

Parameter	Specification / Description
Measurement Method	Multi-band Doppler Radar, Non-contact
Measured Parameters	Flow Rate, Flow Velocity, Water Level
Sensor Integration	Doppler Radar + HD Camera
Flow Condition Adaptation	Partial Pipe, Full Pipe, Backflow
Environmental Protection	IP68 Rating
Data Transmission	4G/5G + BeiDou Dual-Channel
Power Supply	Solar Panel + Lithium Battery
Visualization Platform	GIS Map-Based Network Overview
Primary Applications	Municipal Drainage, Industrial Park Networks, Combined Sewer Systems

Approach

How we implement intelligence into your infrastructure step by step.

Site Survey and Monitoring Point Layout

Conduct comprehensive drainage network investigation, identify critical monitoring nodes (trunk pipe junctions, outfalls, flood-prone points), and develop manhole installation plans

Equipment Selection and Manhole Installation

Select multi-band Doppler radar flowmeters based on pipe diameter and flow range, mount with dedicated brackets on manhole walls ensuring radar beam alignment with water surface

Communication Networking and Power Configuration

Configure RTU telemetry terminals at each monitoring point with 4G/5G network access to monitoring center, select from grid power, solar, or lithium battery based on site conditions

Platform Deployment and System Integration

Deploy drainage network monitoring cloud platform, integrate all monitoring point data, configure GIS maps, real-time trend charts, and alarm rules for end-to-end commissioning

O&M Management and Continuous Optimization

Establish regular inspection routines, remotely check equipment status via cameras, analyze network operation patterns from historical data to continuously optimize monitoring schemes
