This solution is designed for water resource management authorities to monitor the usage volume, water level, and water quality of both groundwater and surface water. It can be extended to enable remote or automatic control of pumps/gates/valves for water usage regulation. The system helps management departments grasp water withdrawal and consumption within their jurisdiction, providing crucial support for quantitative water resource management and the assessment under the strictest water resource management system. It promotes rational water resource allocation and scheduling, strengthens water resource tax collection, improves water-saving levels in the industrial sector and comprehensive water resource utilization efficiency, and comprehensively advances the construction of a water-saving society.

Overview

Summary

Key Advantages

High-Precision, Multi-Medium Adaptive Measurement Capability

Globally Connected IoT Data Acquisition and Transmission Capability

Intelligent Data Analysis and Decision Support Capability

High Reliability and Full Lifecycle Operation and Maintenance Assurance

Flexible and Scalable System Architecture with Multi-Stakeholder Collaboration Capability

Secure and Compliant Data Protection Capability

Challenges

Adaptation of Measurement Technologies Across Diverse Scenarios
Reliability of Data Acquisition, Transmission, and Governance
Complexity of System Integration and Cross-Stakeholder Collaboration
Requirements for Policy Compliance and Security Assurance

Results

Yongkang City Water Resource Supply Management Center Water Intake Facility Standardization Construction Project
Cangnan County Water Withdrawal and Usage Monitoring and Measurement Standardization Construction Project
Xiaoshan District Enterprise Water Intake Real-Time Monitoring System Project
Qingtian County Agricultural Water Price Comprehensive Reform Measurement Facility Procurement and Installation Project

Solution Details

Policy Background for Water Resource Monitoring

In October 2021, the National Development and Reform Commission, the Ministry of Water Resources, and other departments issued the "14th Five-Year Plan for Water-Saving Society Construction." The plan requires: strengthening water withdrawal permit management, implementing dynamic supervision, and enhancing water usage measurement and monitoring. It aims to achieve full coverage of water usage measurement and monitoring in industrial parks and above-scale industrial enterprises.

By 2025, the goal is to basically address the shortcomings in water-saving infrastructure and weak regulatory capacity, achieve significant results in building a water-saving society, control total water use within 640 billion cubic meters, reduce water use per 10,000 yuan of GDP by about 16.0% compared to 2020, reduce water use per 10,000 yuan of industrial added value by 16.0% compared to 2020, achieve an effective utilization coefficient of farmland irrigation water of 0.58, and keep the leakage rate of urban public water supply networks below 9.0%.

System Overview of the Water Resource Usage Measurement and Monitoring System

The Water Resource Usage Measurement and Monitoring System is suitable for water resource management authorities to monitor the usage volume, water level, and water quality of both groundwater and surface water. It can also be extended to enable remote or automatic control of pumps/gates/valves for water usage regulation.

The system helps management departments grasp water withdrawal and consumption within their jurisdiction, providing crucial support for quantitative water resource management and the assessment under the strictest water resource management system. It promotes rational water resource allocation and scheduling, strengthens water resource tax collection, improves water-saving levels in the industrial sector and comprehensive water resource utilization efficiency, and comprehensively advances the construction of a water-saving society.

System Architecture and Functions

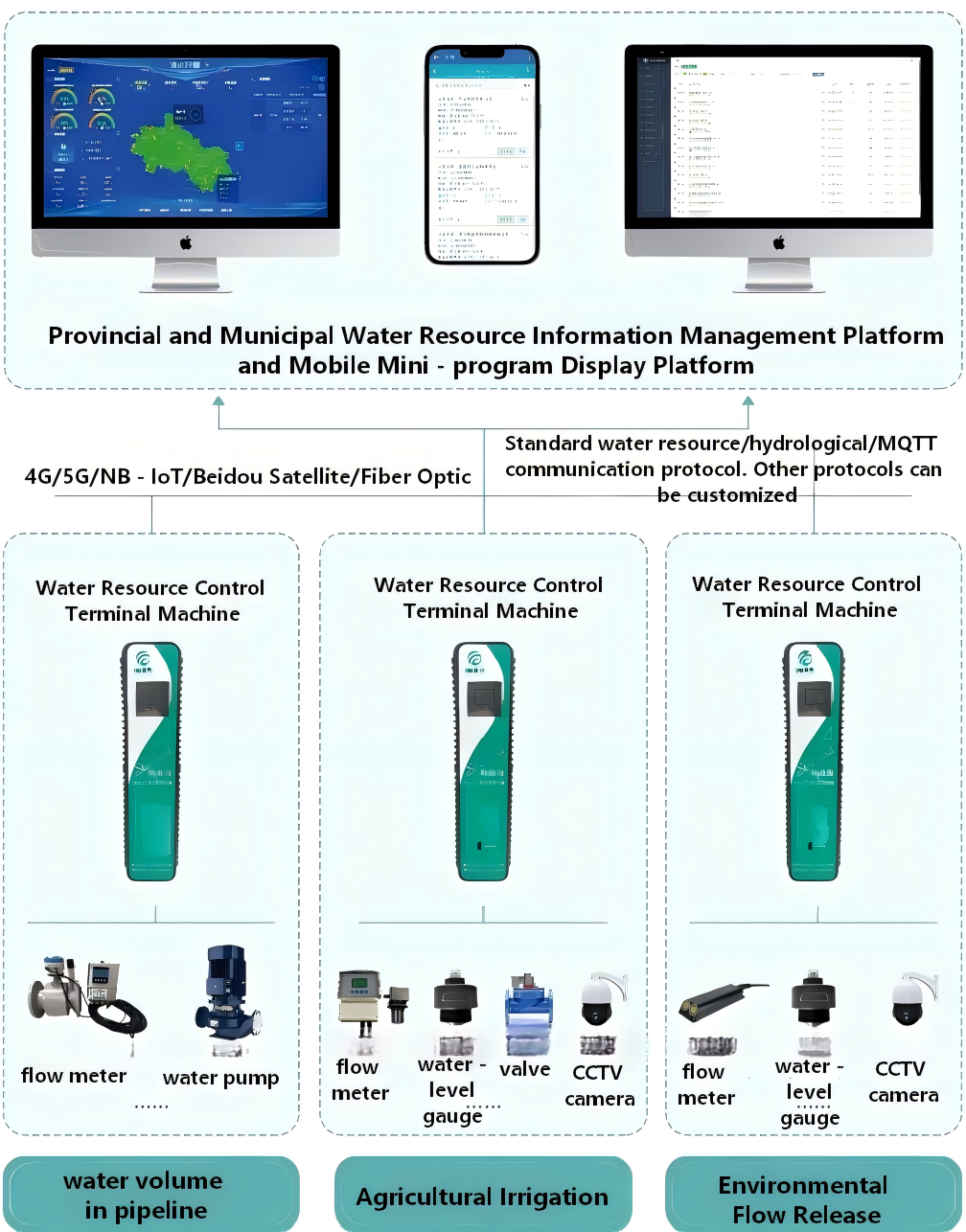

The system architecture is designed for comprehensive water resource monitoring and control, integrating data acquisition, transmission, and management.

Core Functions of the Water Usage Measurement and Monitoring System

Water Usage Measurement and Monitoring

Pipelines: The water resource measurement and control terminal collects instantaneous and cumulative flow data from electromagnetic/ultrasonic flow meters and transmits it remotely to the central platform via wireless networks.
Ecological Releases/Agricultural Irrigation: The water resource measurement and control terminal collects flow and velocity data measured by radar/ultrasonic/Doppler flow meters and transmits it remotely to the central platform.

Equipment Status Monitoring

Equipment Operation Status
Power Supply Status
Battery Level
Data Acquisition Status

Water Withdrawal and Usage Control

Remote control/parameter setting control/card-swiping control of pump (valve/gate) on/off to achieve water withdrawal and usage control.

Abnormal Alarms

Water Volume Exceeds Limit
Water Level Exceeds Limit
Insufficient Battery
Cabinet Door Open

Data Display and Storage

LCD Screen Display
SD Card Storage for Multi-Year Data

Key Advantages of the Monitoring System

Standard Compliance

Compliant with "SZY206-2016 Water Resource Monitoring Data Transmission Protocol" and "SL651-2014 Hydrological Monitoring Data Communication Protocol"

Certified Reliability

Passed Type Inspection for "SL 180-2015 Hydrological Automatic Measurement and Reporting System Equipment - Telemetry Terminal Unit"

High MTBF

Passed Reliability Verification with MTBF ≥ 50,000 hours

Multi-Center Reporting

Supports reporting to provincial, municipal, and county-level platforms simultaneously for multi-level supervision.

Flexible Configuration

Acquisition, storage, and reporting intervals can be configured via local serial port, mobile APP Bluetooth, or remotely.

Main Products in the Water Resource Monitoring System

Measurement and Control Terminal (Hero V9 Series-EC32)

This product features remote data acquisition, control, and communication functions. It can receive operational commands from the host computer to control end actuators. The product is equipped with a color LCD screen for real-time display of acquisition content and device status. It can interface with various types of instruments and sensors including rain gauges, water level gauges, flow velocity meters, and flow meters. Widely used in projects requiring remote monitoring, metering management, usage control, and equipment control in industries such as water utilities, water resources, steam, gas, and power.

Customized Equipment Control Cabinet

Control Cabinet Content: The identification plate primarily includes: monitoring point name, monitoring point equipment QR code, maintenance vendor, maintenance phone number, responsible unit, contact phone number, and other information.

System Software

The central platform software provides data visualization, analysis, reporting, and management tools for comprehensive water resource oversight.

Product Features of the Water Resource Monitoring Solution

High-Precision, Multi-Medium Adaptive Measurement Capability
Globally Connected IoT Data Acquisition and Transmission Capability
Intelligent Data Analysis and Decision Support Capability
High Reliability and Full Lifecycle Operation and Maintenance Assurance
Flexible and Scalable System Architecture with Multi-Stakeholder Collaboration Capability
Secure and Compliant Data Protection Capability

Approach

How we implement intelligence into your infrastructure step by step.

Requirement Investigation and Planning Phase

Form a technical team to visit the project site to clarify the monitoring scope, measurement node locations, medium characteristics, and operating condition parameters. Simultaneously, engage with relevant stakeholders such as water management departments and enterprise users to confirm regulatory compliance requirements (data reporting frequency, measurement accuracy standards) and functional needs (leakage warning, quota management, report generation).

Solution Design Phase

Based on the requirement document, determine equipment models, quantities, and installation locations, and compile equipment lists and deployment drawings. Specify technical requirements such as equipment protection levels (IP68 for outdoor equipment) and calibration cycles.

Deployment and Implementation Phase

Strictly follow design drawings for equipment installation: In industrial scenarios, pay attention to the straight pipe length before and after flow meters; in municipal pipe networks, avoid negative pressure and vibration zones; in agricultural irrigation areas, implement equipment flood and lightning protection measures. After installation, secure the equipment and perform wiring and debugging to ensure proper connection between devices and acquisition terminals.

Commissioning and Acceptance Phase

Conduct a 1-3 month system trial run, collect issues for optimization, test system indicators item by item according to requirements, and verify compliance documentation.
